Product code: MT-ATVU110-400
MT-ATVU110-400
| Model : MT-ATVU110-400 |
| Frequency Range : 110-400 MHz |
| Impedance : 50 Ω |
| Gain : 2.5 dBi |
| Weight : 6 Kg |
| Connector : Nf |
Product Part Number
MT-ATVU110-400
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 110 to 400 MHz | Height | 1.13 m |
| Impedance | 50 Ω | Radom diameter | 0.41 m |
| VSWR in the bands | < 2.0 | Material | AGS – POMC |
| Isotropic gain | 2.5 dBi | Weight | 6 kg |
| Polarization | Vertical | Wind loading area | 0.39 m² |

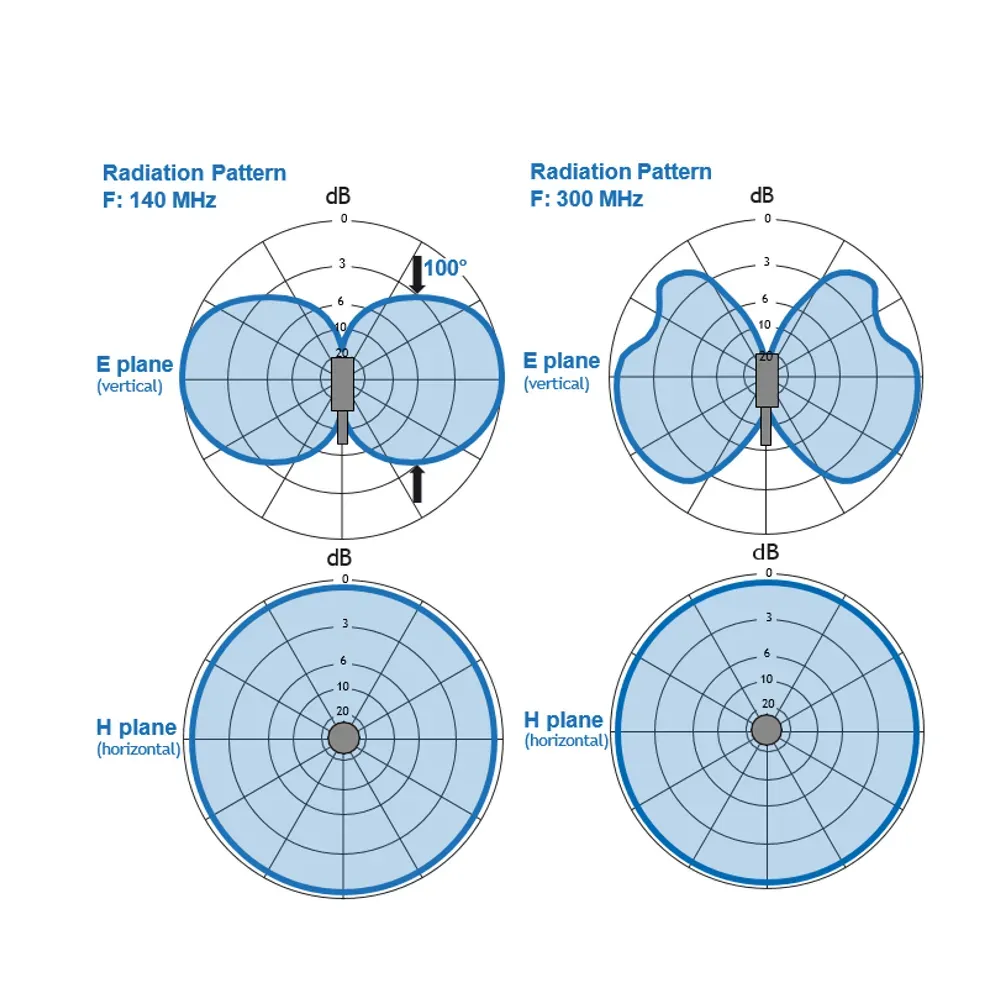

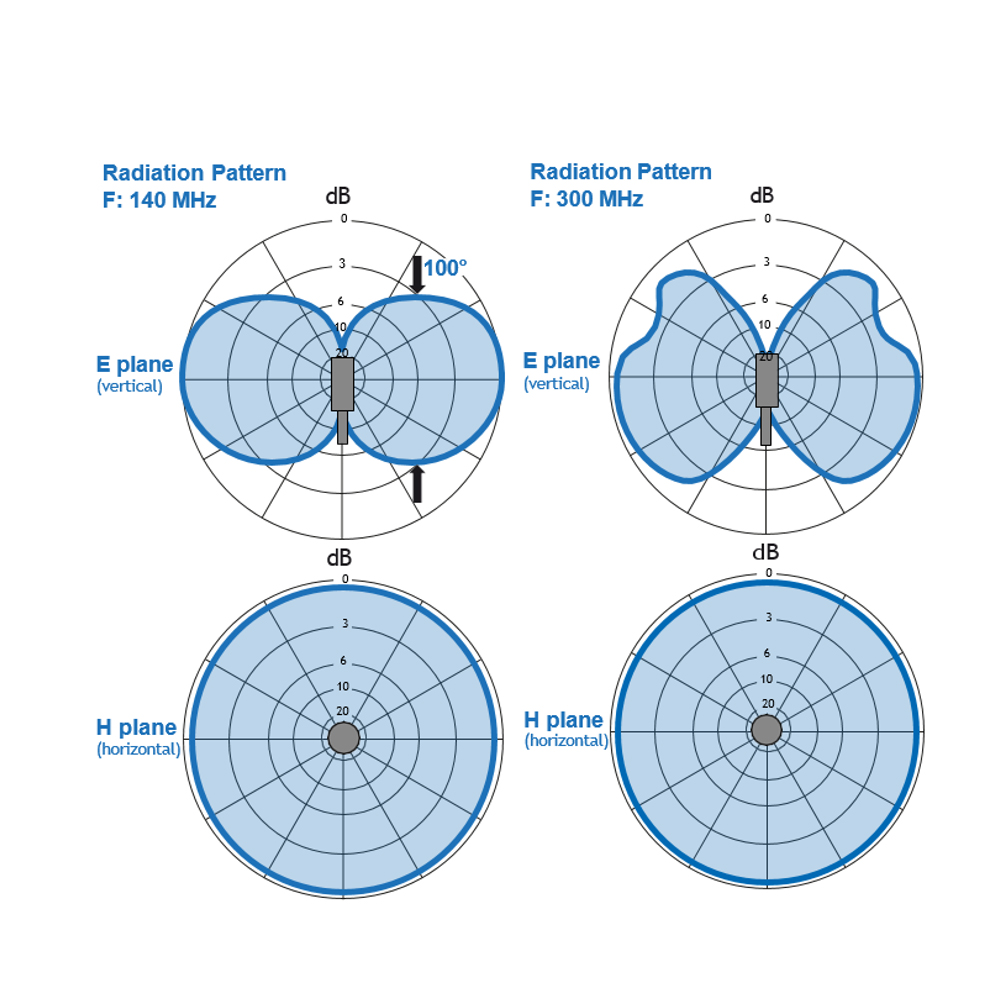

| Radiation pattern | 70° to 100° | Wind speed resistance | 180 km/h without frost |
| E plane | Omni at ± 0.5 dB | Wind load at 160 km/h | 20 N |
| H plane | Temperature range | -40° to +70°C | |
| Maximum input power | 400 W cw | ||
| Connector | N f |
