Product code: MT-AUDE225-380
MT-AUDE225-380
| Model : MT-AUDE225-380 |
| Frequency Range :225-380 MHz |
| Impedance : 50 Ω |
| Gain : 2 dBi |
| Weight : 3.5 Kg |
| Connector : Nf |
Product Part Number
MT-AUDE225-380
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 225 to 380 MHz | Height | 0.85 m |
| Impedance | 50 Ω | Radom diameter | 120 mm |
| VSWR in the bands | < 1.8 | Material | AGS – POM C – Fiberglass |
| Isotropic gain | 2 dBi | Weight | 3.5 kg |
| Polarization | Vertical | Wind loading area | 0.39 m² |

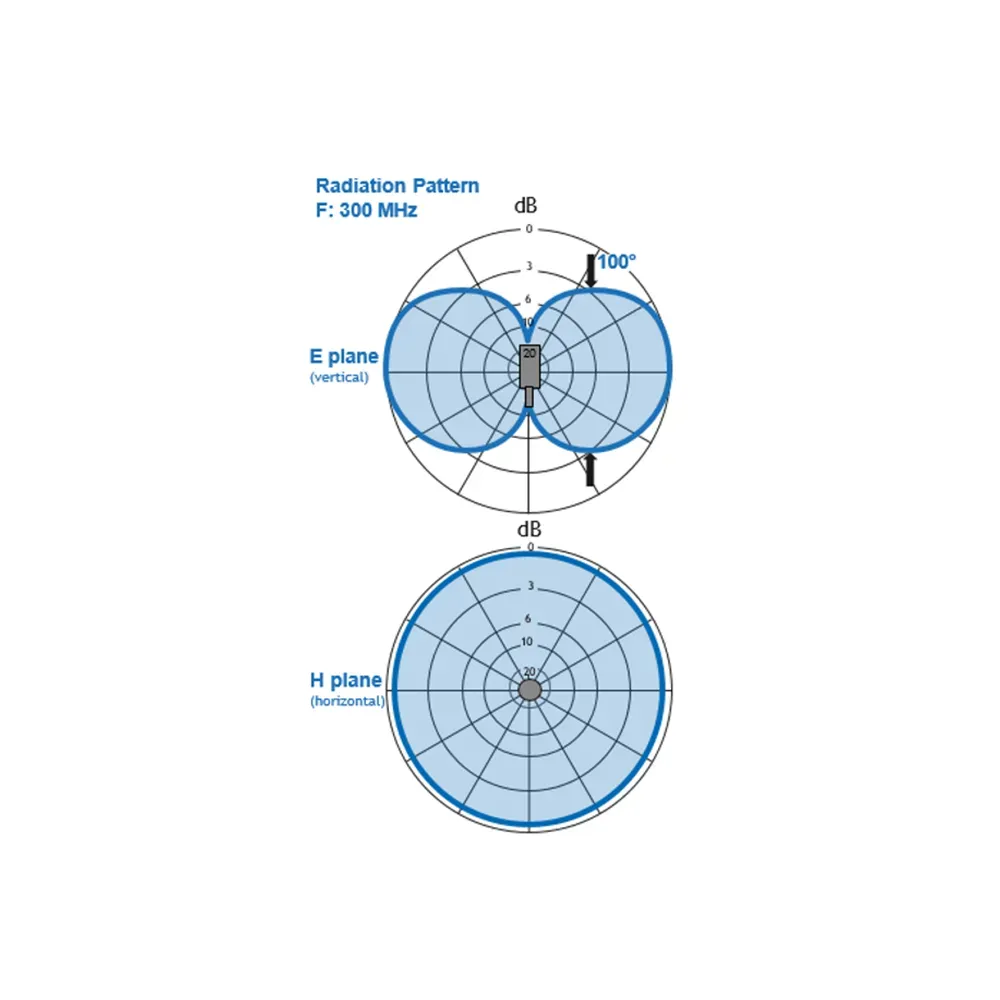

| Radiation pattern | 100° | Wind speed resistance | 230 km/h without frost |
| E plane | Omni at ± 0.5 dB | Wind load at 160 km/h | 29 N |
| H plane | Temperature range | -40° to +70°C | |
| Maximum input power | 300 W cw | ||
| Connector | N f |
