Product code: MT-AUDLP1
MT-AUDLP1
| Model : MT-AUDLP1 |
| Frequency Range : 225-400 MHz |
| Impedance : 50 Ω |
| Gain : 2.5 dBi |
| Weight : 35 Kg |
| Connector : Nf |
Product Part Number
MT-AUDLP1
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 225 to 400 MHz | Height | 4.00 m |
| Impedance | 50 Ω | Spread | 1,00 m |
| VSWR in the band | < 1.7 | Material | AGS |
| Isotropic gain | 2.5 dBi | Weight | 35 kg |
| Polarization | Vertical | Wind speed resistance | 160 km/h with guys |

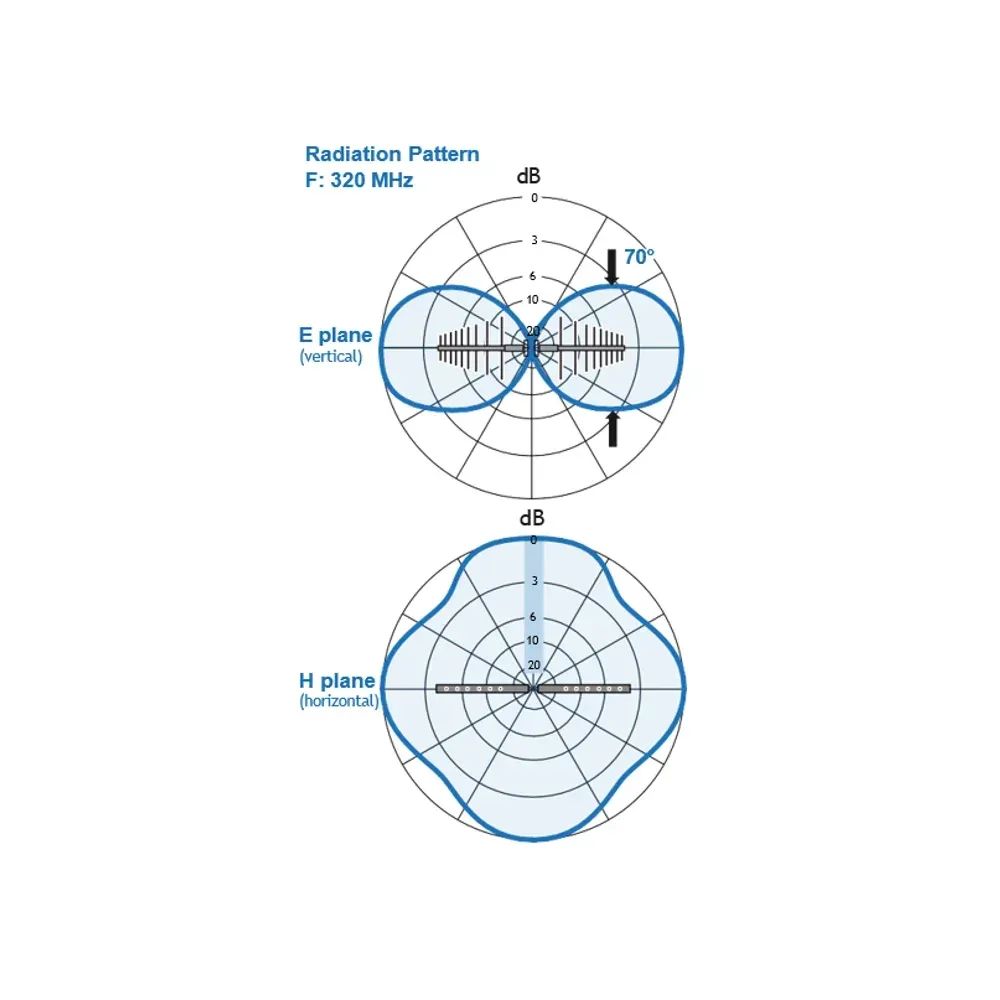

| Radiation pattern | 70° | Temperature range | -40° to +70°C |
| E plane | 360° at ± 2 dB | Colour | ICAO Red / White |
| H plane | |||
| Maximum input power | 300 W cw | ||
| Connector | Nf |
