Product code: MT-AULP225-400
MT-AULP225-400
| Model : MT-AULP225-400 |
| Frequency Range : 225-400 MHz |
| Impedance : 50 Ω |
| Gain : 6.5 dBi |
| Weight : 3 Kg |
| Connector : Nf |
Product Part Number
MT-AULP225-400
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 225 to 400 MHz | Height | 0.42 m |
| Impedance | 50 Ω | Spread | 0.80 m |
| VSWR in the band | < 1.6 | Material | AGS – POM C |
| Isotropic gain | 6.5 dBi | Weight | 3 kg |
| Polarization | Vertical / Horizontal | Wind load area | 200 km/h without frost |

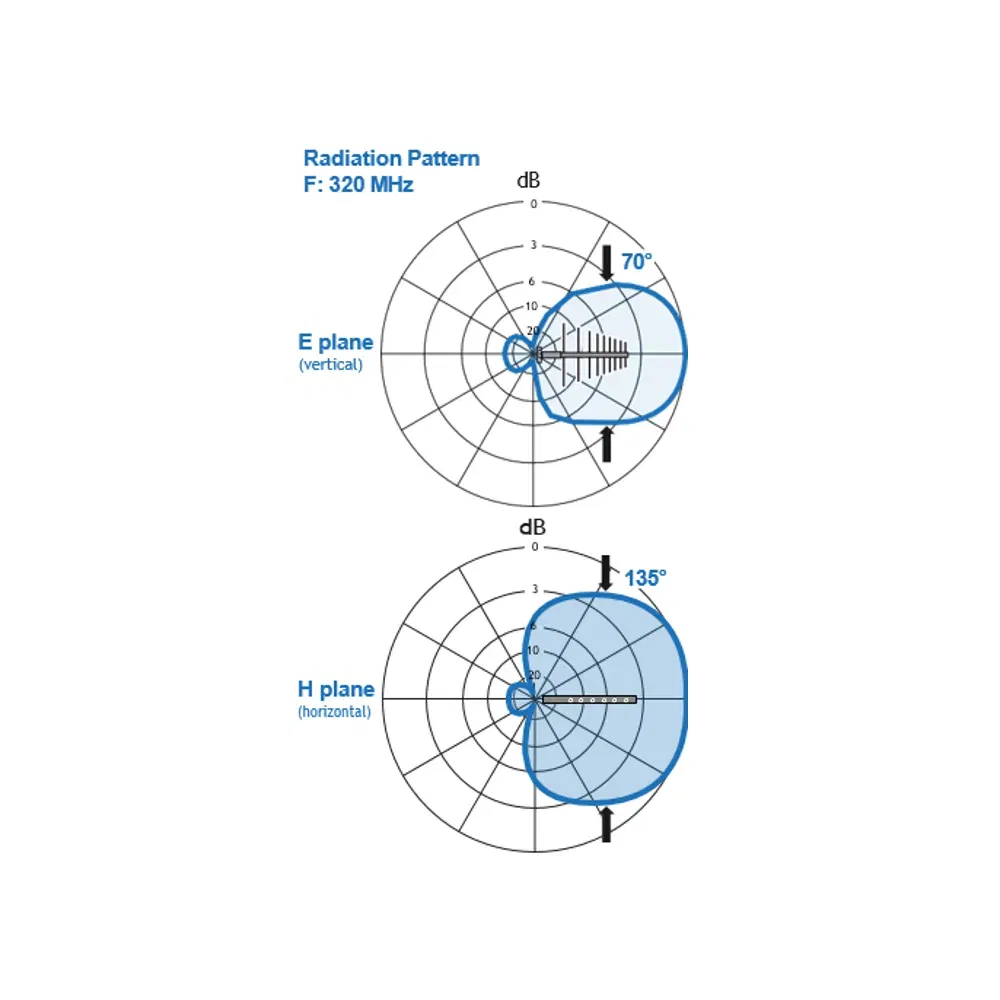

| Radiation pattern E plane H plane | 70° 135° | Wind speed resistance Temperature range Colour | -40° to +70°C White RAL 9010 |
| Maximum input power | 300 W cw | ||
| Connector | Nf |
