Product code: MT-AVD170-230DAB
MT-AVD170-230DAB
| Model : MT-AVD170-230DAB |
| Frequency Range : 170-230 MHz |
| Impedance : 50Ω |
| Gain : 3.5 dBi |
| Weight : 3.5 kg |
| Color : White RAL 9010 |
Product Part Number
MT-AVD170-230DAB
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 170 to 230 MHz | Height | 0.70 m |
| 200 to 230 MHz | Width | 0.45 m | |
| Impedance | 50 Ω | Materials | AGS – POM C – Stainless |
| VSWR in the band | < 1.5 | Weight | 3.5 kg |
| Isotropic gain | 3.5 dBi | Wind loading area | 0.10 m² |
| Polarization | Vertical | Wind speed resistance | 220 km/h without frost |

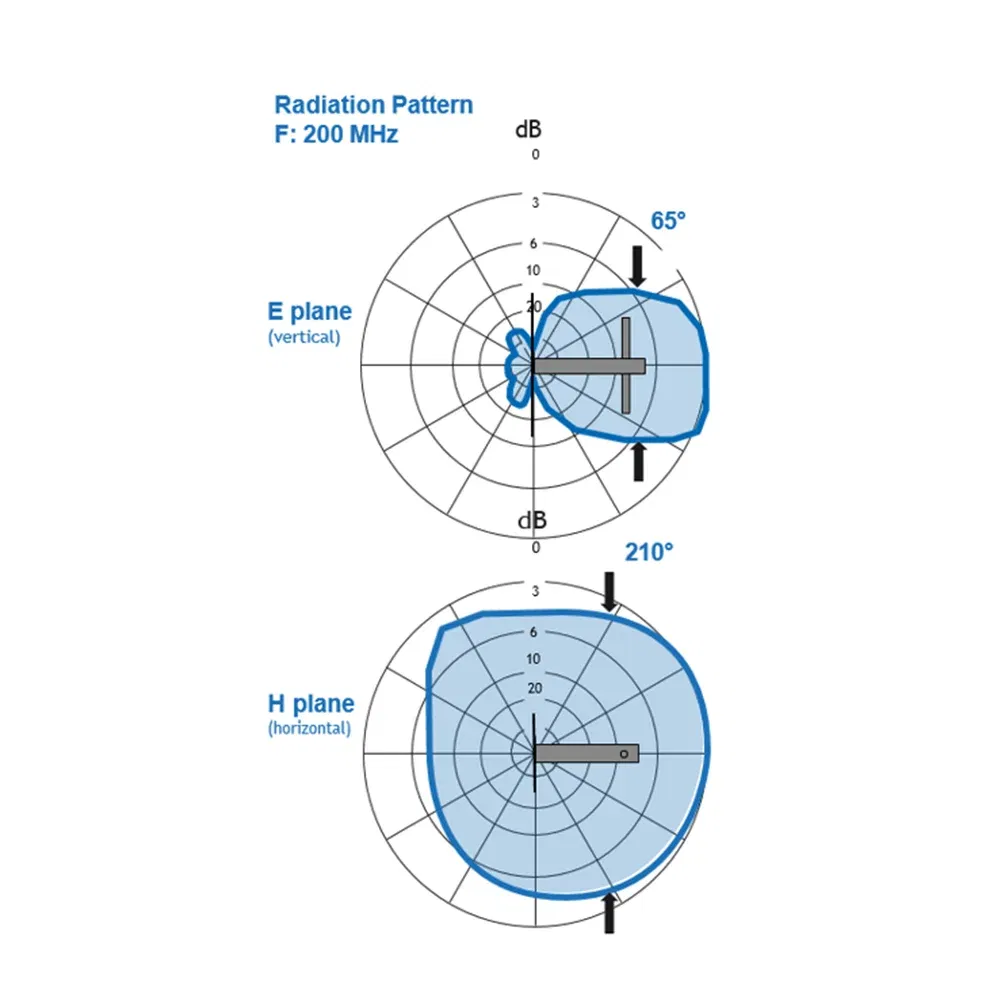

| Radiation pattern | 65° | Wind load at 160 km/h | 30 Nm |
| E plane | 210° | Temperature range | -40° to +80°C |
| H plane | |||
| Maximum input power | 1 kW (7-16) | Colour | White RAL 9010 |
| 3 kW (EIA 7/8’’) |
