Product code: MT-AVD87-108FM
MT-AVD87-108FM
| Model : MT-AVD87-108FM |
| Frequency Range : 87-108 MHz |
| Impedance : 50Ω |
| Gain : 3.5 dBi |
| Weight : 5 kg |
| Connector : 7-16 f |
Product Part Number
MT-AVD87-108FM
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 87 to 108 MHz | Height | 1.35 m |
| Impedance | 50 Ω | Width | 0.85 m |
| VSWR in the band | < 1.5 | Materials | AGS – POM C – Stainless |
| Isotropic gain | 3.5 dBi | Weight | 5 kg |
| Vertical | |||
| Polarization | Vertical | Wind loading area | 0.13 m² |

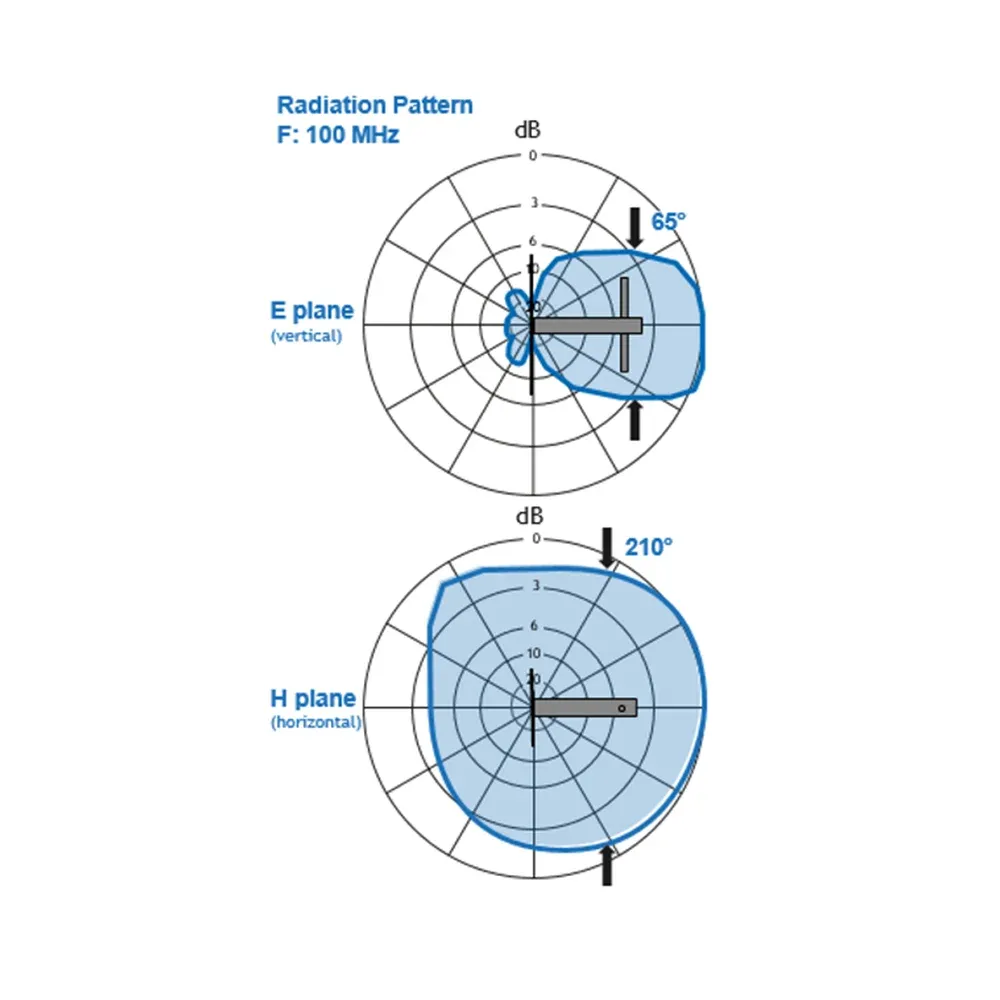

| Radiation pattern | 65° | Wind speed resistance | 220 km/h without frost |
| E plane | 210° | Wind load at 160 km/h | 30 Nm |
| H plane | Temperature range | -40° to +80°C | |
| Maximum input power | 1 kW / 3 kW cw @ 7/8’’ | Colour | White RAL 9010 |
| Connector | 7-16 f / EIA 7/8’’ |
