Product code: MT-AVDIP115-145
MT-AVDIP115-145
| Model : MT-AVDIP115-145 |
| Frequency Range : 115-145 MHz |
| Impedance : 50 Ω |
| Gain : 3.5 dBi |
| Weight : 3.5 Kg |
| Connector : 7-16 f |
Product Part Number
MT-AVDIP115-145
Electrical & Mechanical Specification
| Specification: | ||||
|---|---|---|---|---|
| Frequency range | 115 to 145 MHz | Height | 1.05 m | |
| Impedance | 50 Ω | Width | 0.65 m | |
| VSWR in the band | < 1.5 | Materials | AGS / Fiberglass | |
| Isotropic gain | 3.5 dBi | Weight | 3.5 kg | |
| Polarization | Vertical | Wind loading area | 0.1 m² | |

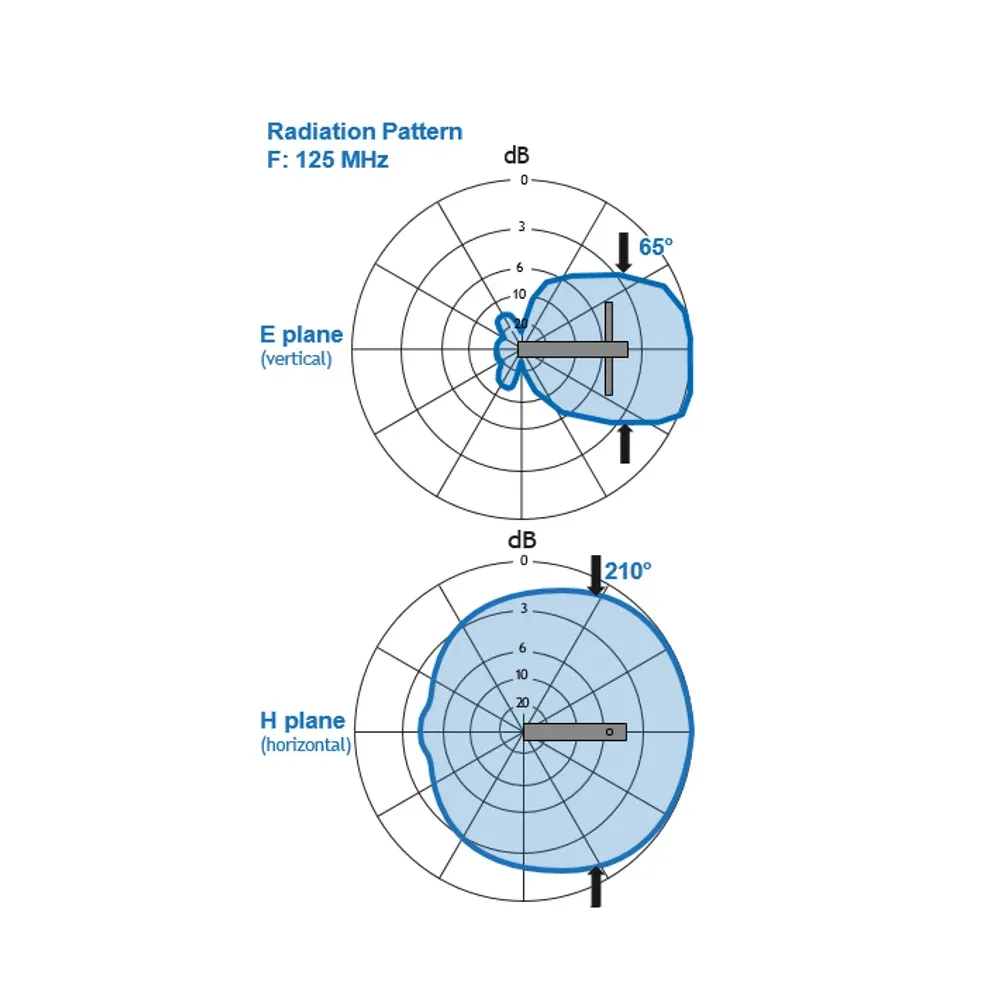

| Radiation pattern | 65° | Wind speed resistance | ||
| E plane | 210° | Temperature range | 220 km/h without frost | |
| H plane | Colour | |||
| Maximum input power | 1 kW cw | -40° to +70°C | ||
| Connector | 7-16 f | White RAL 9010 |
