Product code: MT-AVDLP3H
MT-AVDLP3H
| Model : MT-AVDLP3H |
| Frequency Range : 115-140 MHz |
| Impedance : 50 Ω |
| Gain : 2.5 dBi |
| Weight : 80 Kg |
| Connector : Nf |
Product Part Number
MT-AVDLP3H
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 115 to 140 MHz | Height | 11.95 m |
| Impedance | 50 Ω | Spread | 1.70 m |
| VSWR in the band | < 1.6 | Material | AGS |
| Isotropic gain | 2.5 dBi | Weight | 80 kg |
| Polarization | Vertical | Wind speed resistance | 160 km/h with guys |

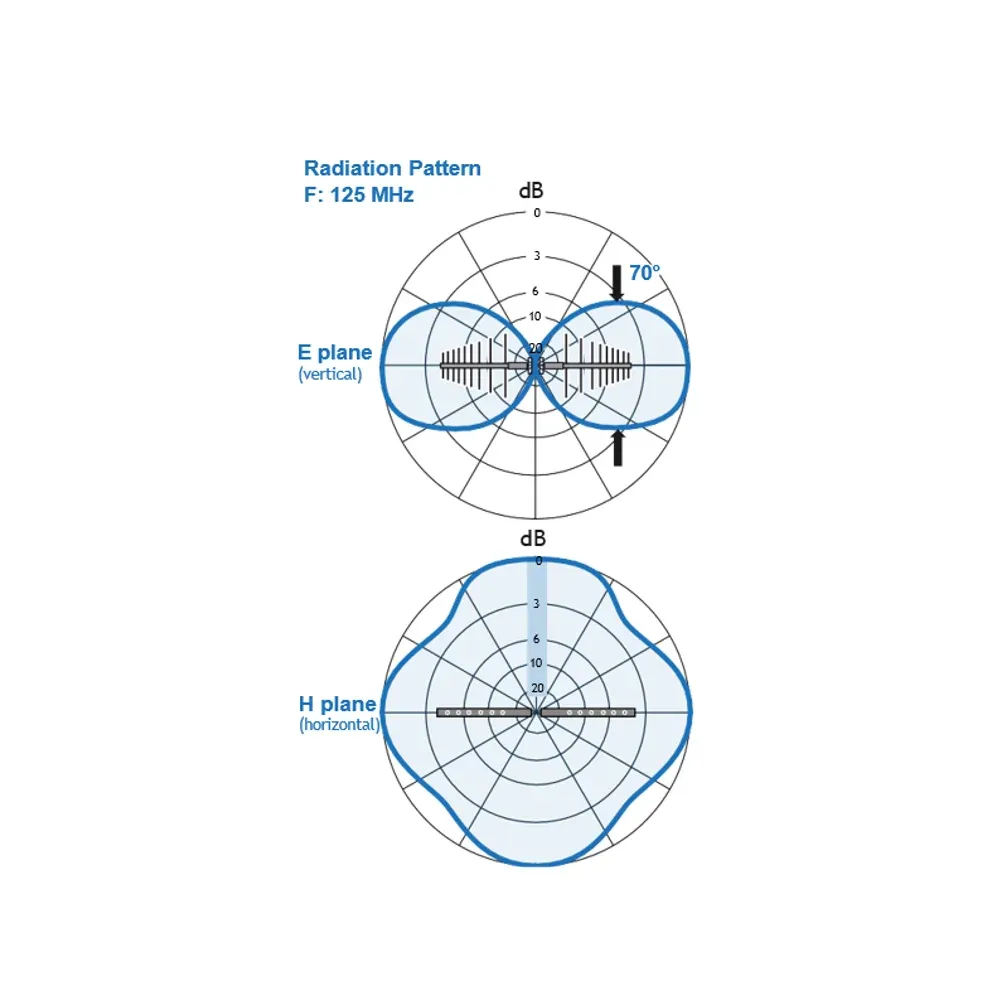

| Radiation pattern | 70° | Temperature range | -40° to +70°C |
| E plane | 360° at ± 2 dB | Colour | ICAO Red / White |
| H plane | Staying | 2 levels of 4 insulated guys | |

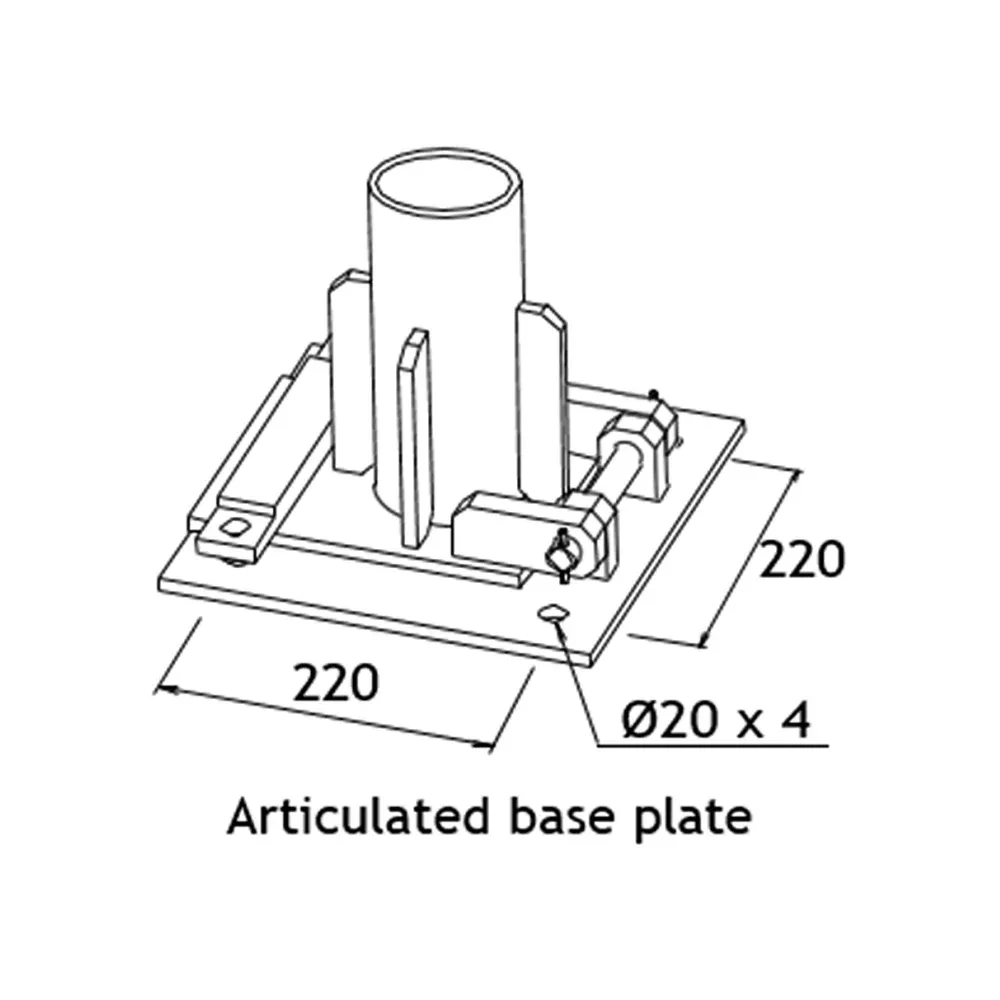

| Maximum input power | 500 W cw | Base plate | Articulated |
| Inter-port isolation between adjacent aerial | 3H: >45 dB | ||
| Connector | Nf |
