Product code: MT-AVGP Lite 162-174 Emergency
MT-AVGP Lite 162-174 Emergency
| Model : MT-AVGP Lite 162-174 Emergency |
| Frequency Range : 162-174 MHz |
| Impedance : 50Ω |
| Gain : 2.15 dBi |
| Weight : 1.5 kg |
| Connector : N f |
Product Part Number
MT-AVGP Lite 162-174 Emergency
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 162 to 174 MHz | Height | 0.70 m |
| Impedance | 50 Ω | Maximum span | 0.80 m |
| VSWR in the band | < 1.5 | Dipole diameter | 40 mm |
| Isotopic Gain | 2.15 dBi | Material | passivated aluminium |
| Polarization | Vertical | Weight | 1.5 kg |

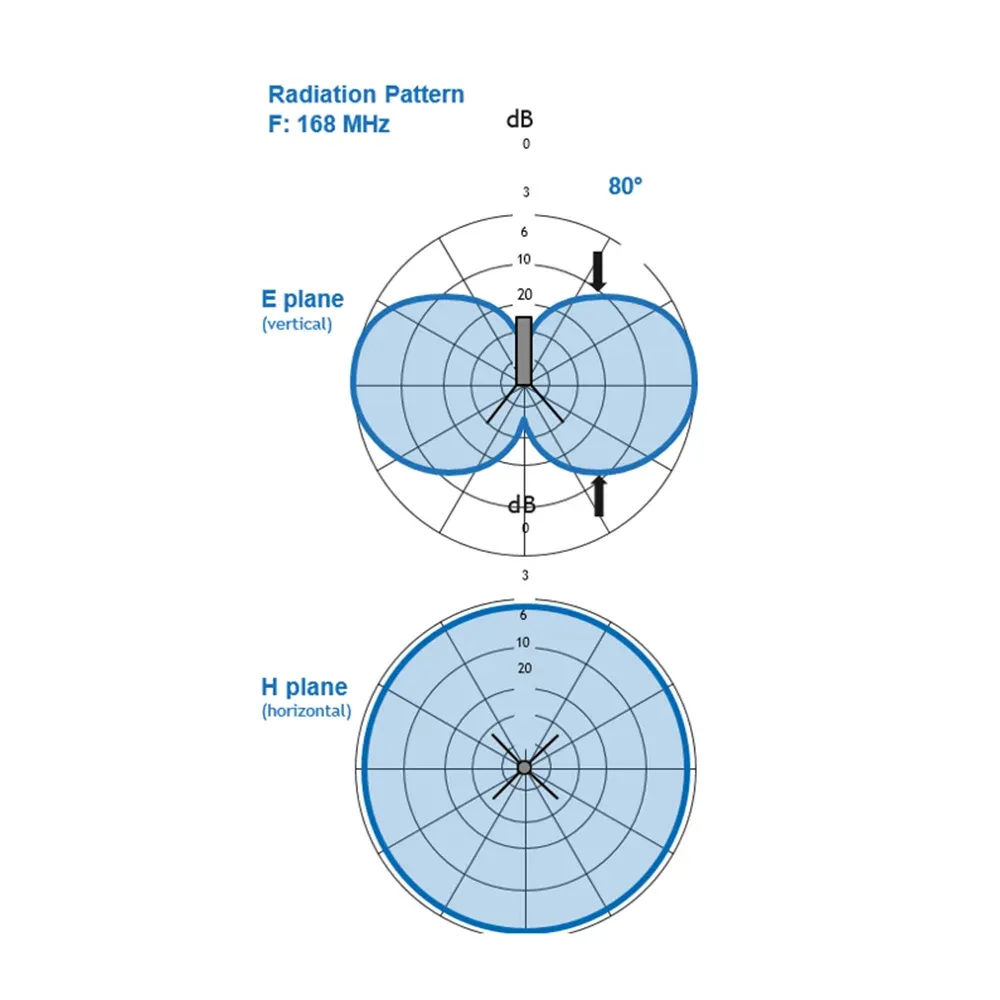

| Radiation pattern | 80° | Wind loading area | 0.03 m² |
| E plane | Omni at ± 0.5 dB | Wind speed resistance | 200 km/h |
| H plane | Wind load at 160 km/h | 30 N | |
| Maximum input power | 500 W cw | Temperature range | -40° to +70°C |
| Connector | N f | Fixation included | Ø 25 to 50mm |
