Product code: MT-AVGP Lite 68-74 Emergency
MT-AVGP Lite 68-74 Emergency
| Model : MT-AVGP Lite 68-74 Emergency |
| Frequency Range : 68-74 MHz |
| Impedance : 50Ω |
| Gain : 2.15 dBi |
| Weight : 2.3 kg |
| Connector : Nf |
Product Part Number
MT-AVGP Lite 68-74 Emergency
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 68 to 74 MHz | Height | 1.68 m |
| Impedance | 50 Ω | Maximum span | 1.76 m |
| VSWR in the band | < 1.5 | Dipole diameter | 40 mm |
| Isotropic gain | 2.15 dBi | Material | passivated aluminium |
| Polarization | Vertical | Weight | 2.3 kg |

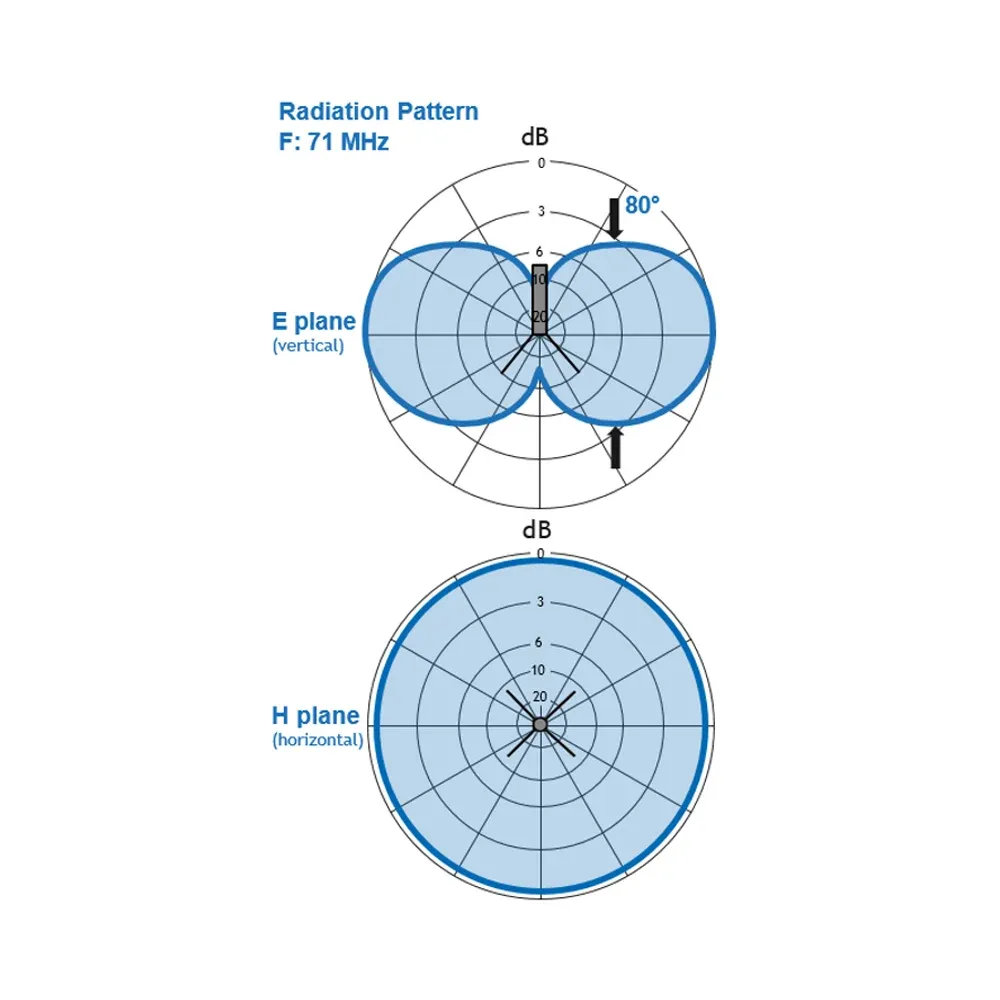

| Radiation pattern | 80° | Wind loading area | 0.07 m² |
| E plan | Omni at ± 0.5 dB | Wind speed resistance | 200 km/h |
| H plane | Wind load at 160 km/h | 71 N | |
| Maximum input power | 500 W cw | Temperature range | -40° to +70°C |
| Connector | N f | Fixation included | Ø 25 to 50mm |
