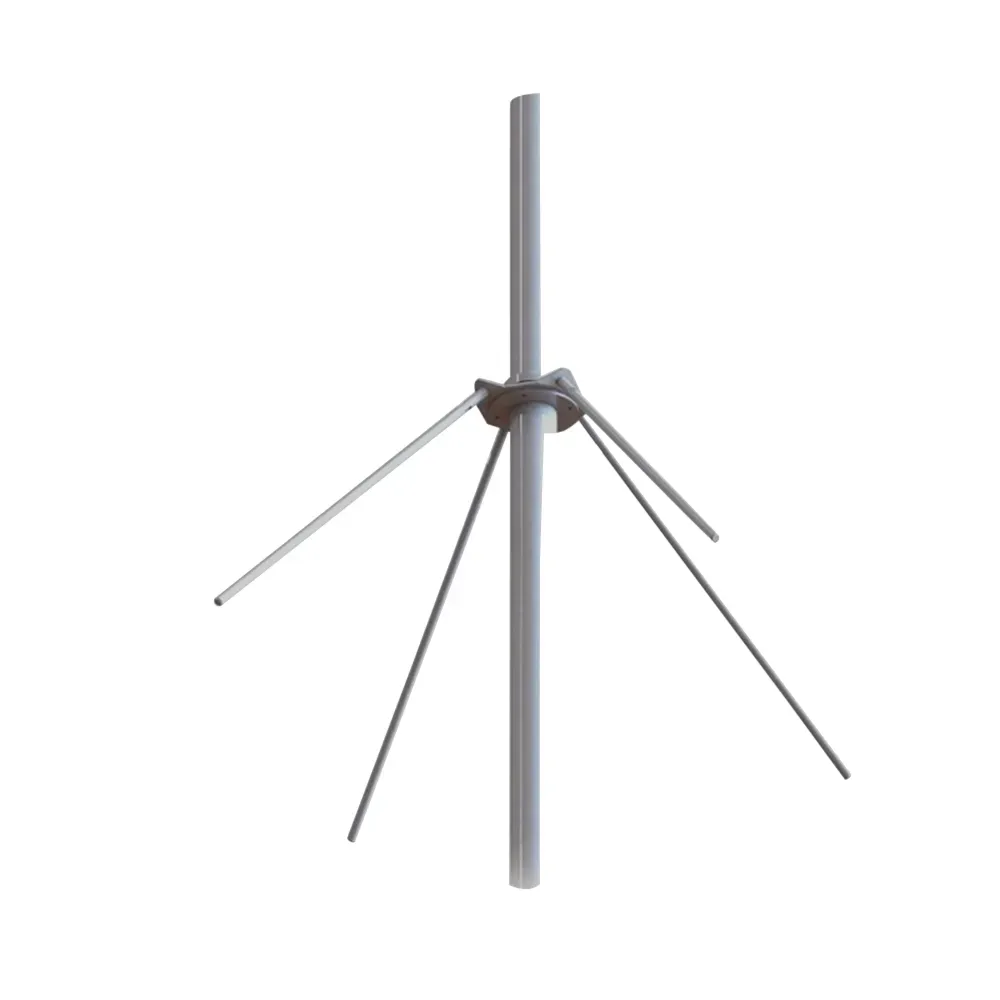

Product code: MT-AVGP110-150
MT-AVGP110-150
| Model : MT-AVGP110-150 |
| Frequency Range : 110-150 MHz |
| Impedance : 50 Ω |
| Gain : 2.5 dBi |
| Weight : 2.8 Kg |
| Connector : Nf |
Product Part Number
MT-AVGP110-150
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 110 to 150 MHz | Height | 0.95 m |
| Impedance | 50 Ω | Maximum span | 0.98 m |
| VSWR in the band | < 2.2 | Dipole diameter | 65 mm |
| VSWR (118-136 MHz) | < 1.6 | Material | AGS – POM C |
| Isotropic gain | 2.5 dBi | Weight | 2.8 kg |
| Polarization | Vertical | Wind loading area | 0.08 m² (0.1 m² with cover) |

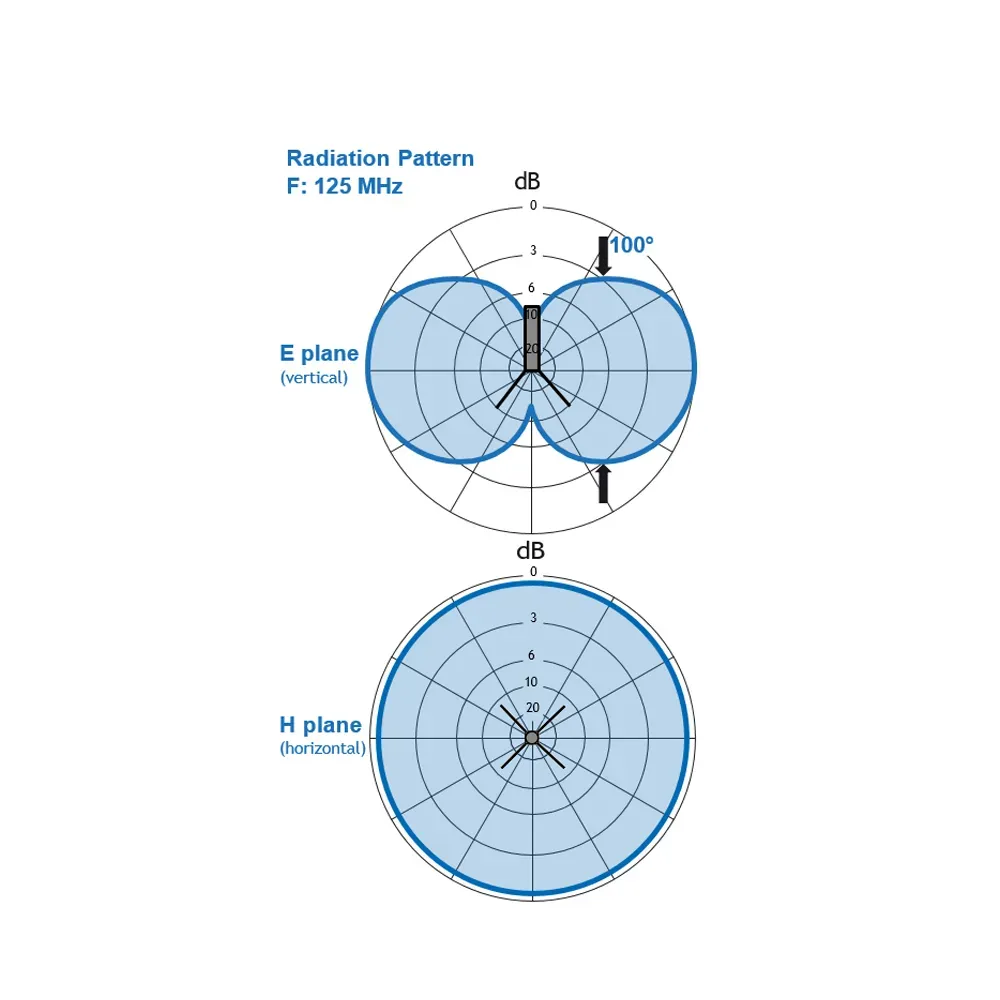

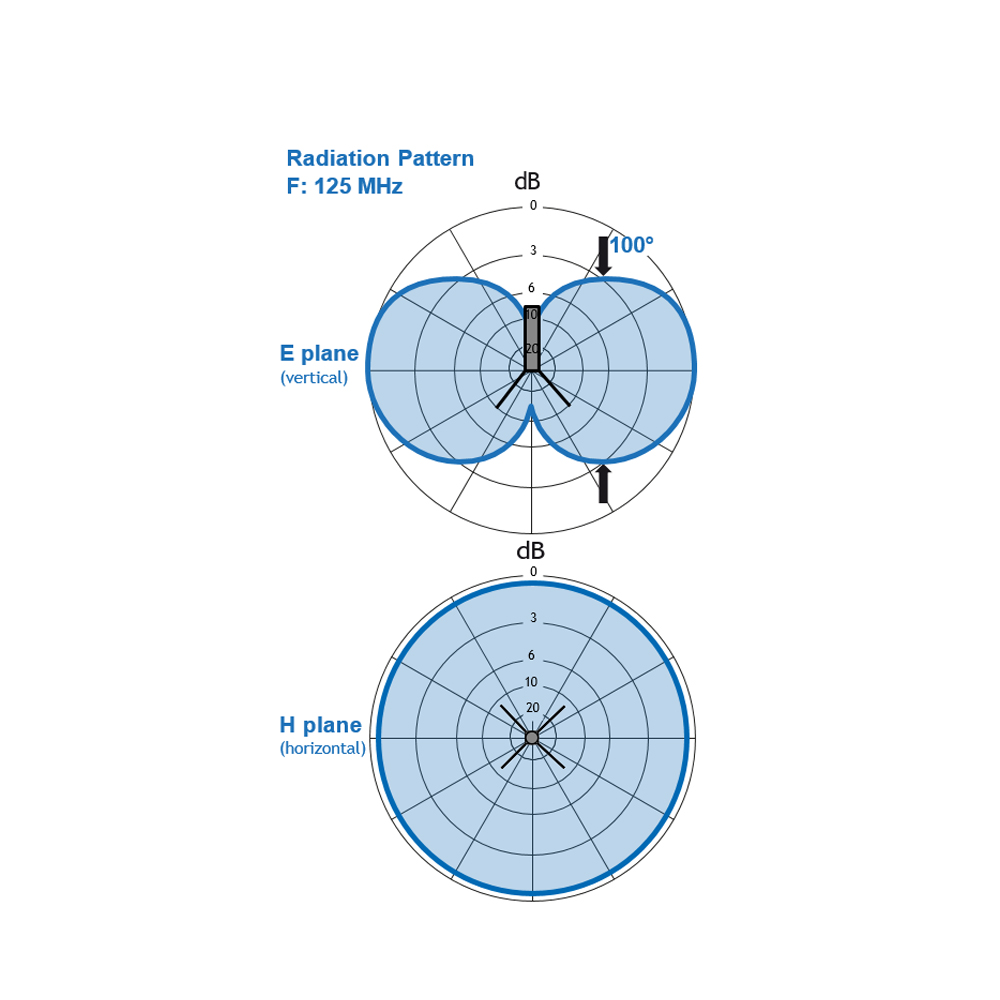

| Radiation pattern | 100° | Wind speed resistance | 230 km/h without frost |
| E plane | Omni at ± 0.5 dB | Wind load at 160 km/h | 29 N |
| H plane | Temperature range | -40° to +70°C | |
| Maximum input power | 500 W c w | ||
| Output cable assembly | N f – RG 214/U – L = 0.5 m |
