Product code: MT-AVGP150-170 Navy
MT-AVGP150-170 Navy
| Model : MT-AVGP150-170 Navy |
| Frequency Range : 150-170 MHz |
| Impedance : 50Ω |
| Gain : 2.5 dBi |
| Weight : 3.5 kg |
| Connector : N f – RG 214/U – L = 0.5 m |
Product Part Number
MT-AVGP150-170 Navy
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 150 to 170 MHz | Height | 0.68 m |
| Impedance | 50 Ω | Maximum span | 0.65 m |
| VSWR in the band | < 1.8 | Dipole diameter | 65 mm |
| Isotropic gain | 2.5 dBi | Materials | AGS – POM C – Stainless |
| Polarization | Vertical | Weight | 3.5 kg |

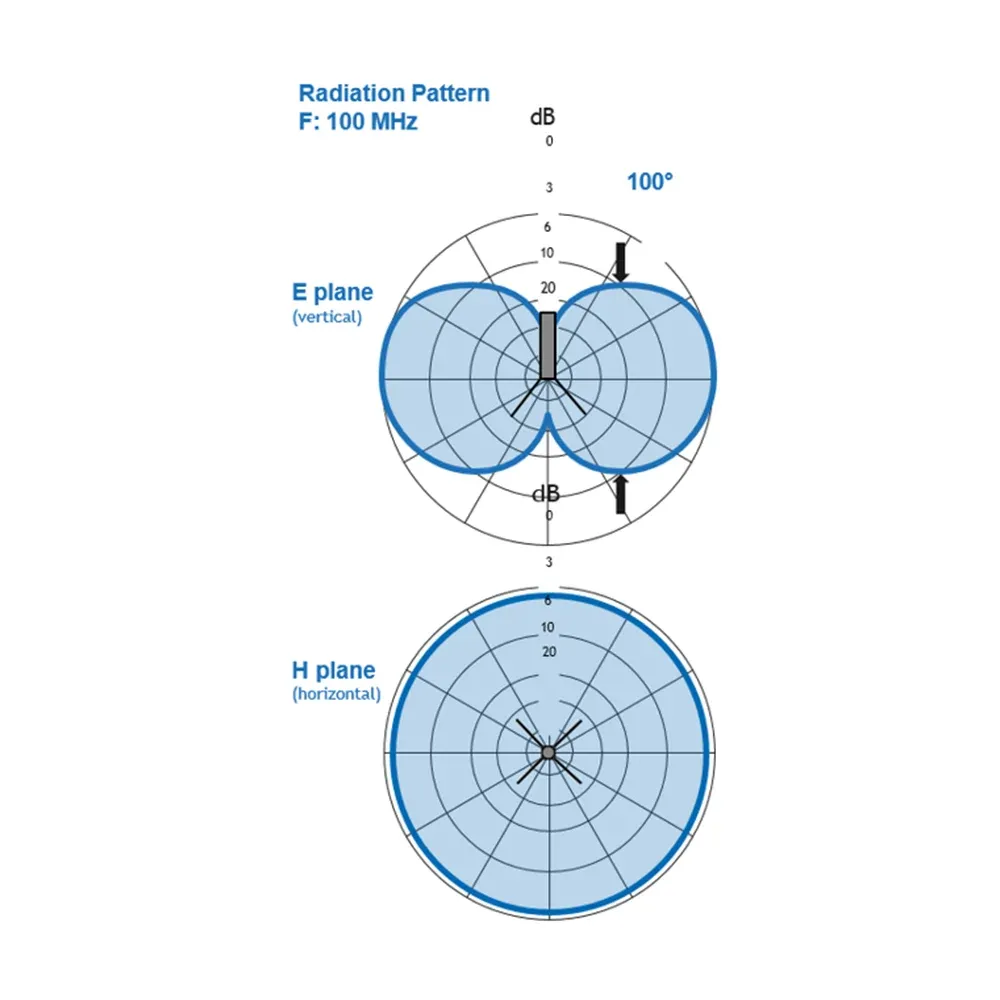

| Radiation pattern | Wind loading area | 0.08 m² | |
| E plan | 100° | Wind speed resistance | 230 km/h without frost |
| H plan | Omni at ± 0.5 dB | Wind load at 160 km/h | 33 Nm / 25 Nm |
| Maximum input power | 500 W cw | Temperature range | -40° to +70°C |
| Connector | N f – RG 214/U – L = 0.5 m | Colour | White RAL 9010 |
