Product code: MT-AVGP170-240DAB
MT-AVGP170-240DAB
| Model : MT-AVGP170-240DAB |
| Frequency Range : 170-240 MHz |
| Impedance : 50Ω |
| Gain : 2.5 dBi |
| Weight : 2.1 kg |
| Connector : 7-16 f |
Product Part Number
MT-AVGP170-240DAB
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 170 to 240 MHz | Height | 0.63 m |
| Impedance | 50 Ω | Maximum span | 0.60 m |
| VSWR in the band | < 1.8 | Dipole diameter | 65 mm |
| Isotropic gain | 2.5 dBi | Materials | AGS – POM C – Stainless |
| Polarization | Vertical | Weight | 2.1 kg |

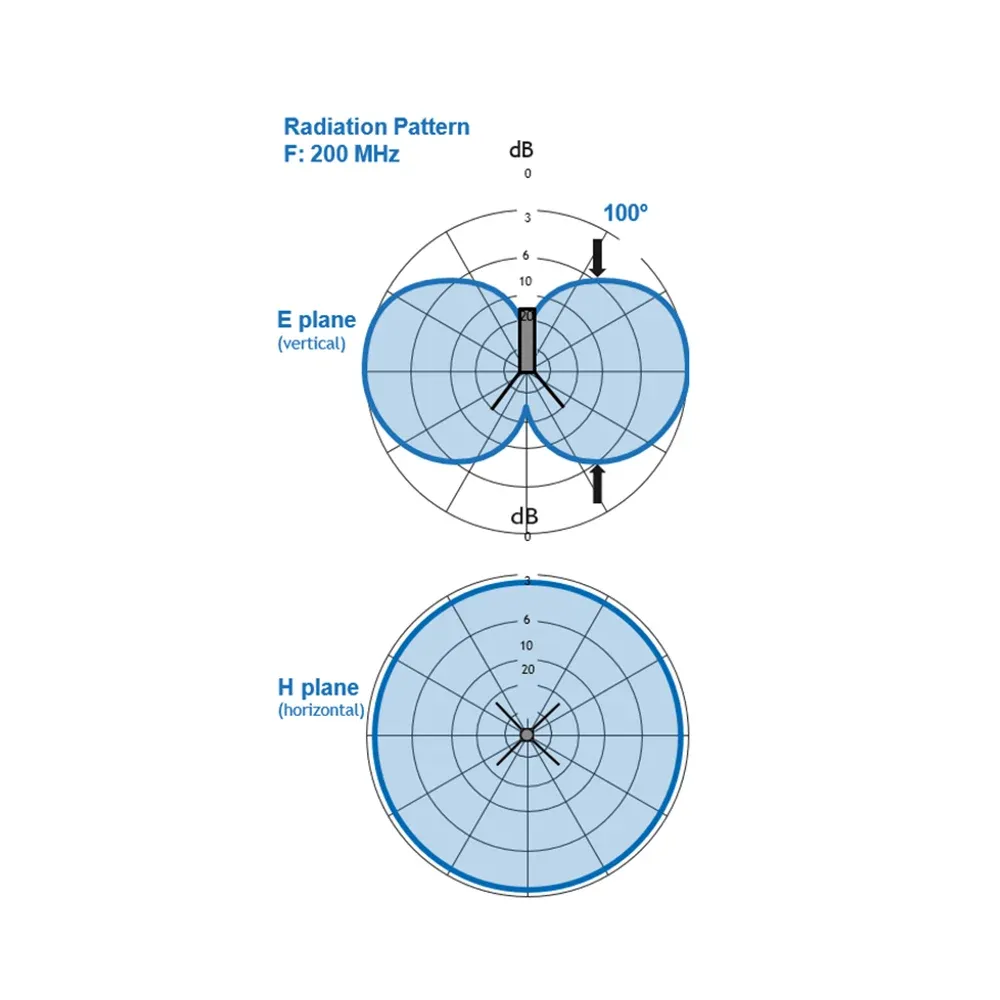

| Radiation pattern | 100° | Wind loading area | 0.08 m² |
| E plane | Omni at ± 0.5 dB | Wind speed resistance | 230 km/h without frost |
| H plane | Wind load at 160 km/h | 25 Nm | |
| Maximum input power | 1000 W cw | Temperature range | -40° to +80°C |
| Connector | 7-16 f | Colour | White RAL 9010 |
