Product code: MT-AVGP87-108FM
MT-AVGP87-108FM
| Model : MT-AVGP87-108FM |
| Frequency Range :87-108 MHz |
| Impedance : 50Ω |
| Gain : 2.5 dBi |
| Weight : 3.5 kg |
| Connector : Nf |
Product Part Number
MT-AVGP87-108FM
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 87 to 108 MHz | Height | 1.25 m |
| Impedance | 50 Ω | Maximum span | 1.20 m |
| VSWR in the band | < 1.8 | Dipole diameter | 65 mm |
| Isotropic gain | 2.5 dBi | Materials | AGS – POM C – Stainless |
| Polarization | Vertical | Weight | 3.5 kg |

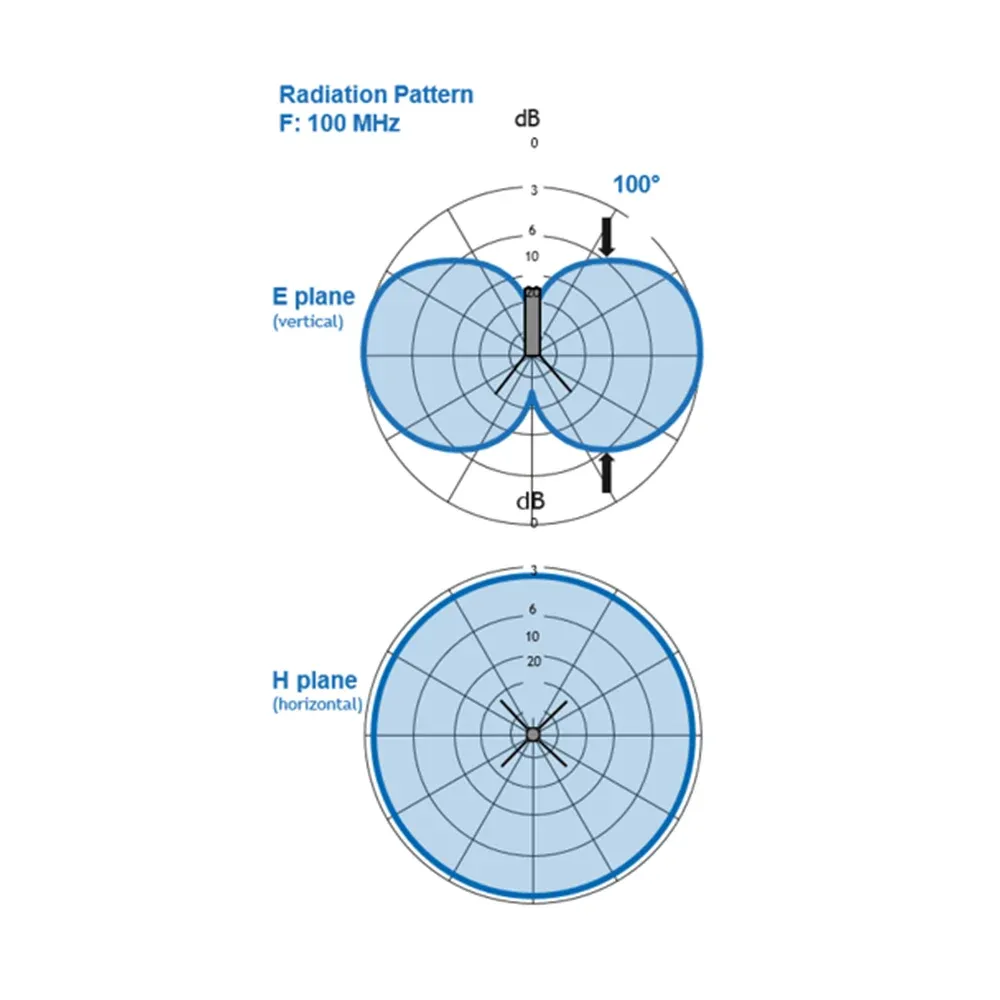

| Radiation pattern | 100° | ||
| E plan | Omni at ± 0.5 dB | Wind loading area | 0.08 m² |
| H plan | Wind speed resistance | 230 km/h without frost | |
| Wind load at 160 km/h | 33 Nm / 25 Nm | ||
| Maximum input power | 500 W cw | Temperature range | -40° to +70°C |
| Connector | N f – RG 214/U – L = 0.5 m | Colour | White RAL 9010 |
