Product code: MT-AVLP-R170-240DAB
MT-AVLP-R170-240DAB
| Model : MT-AVLP-R170-240DAB |
| Frequency Range : 170-240 MHz |
| Impedance : 50Ω |
| Gain : 6.5 dBi |
| Weight :4 kg |
| Connector : N f |
Product Part Number
MT-AVLP-R170-240DAB
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 170 to 240 MHz | Length | 1.05 m |
| Impedance | 50 Ω | Spread | 0.70 m |
| VSWR in the band | < 1.6 | Materials | AGS – POM C |
| Isotropic gain | 6.5 dBi | Weight | 4 kg |
| Polarization | Vertical / Horizontal | Wind loading area | 0.15 m² |

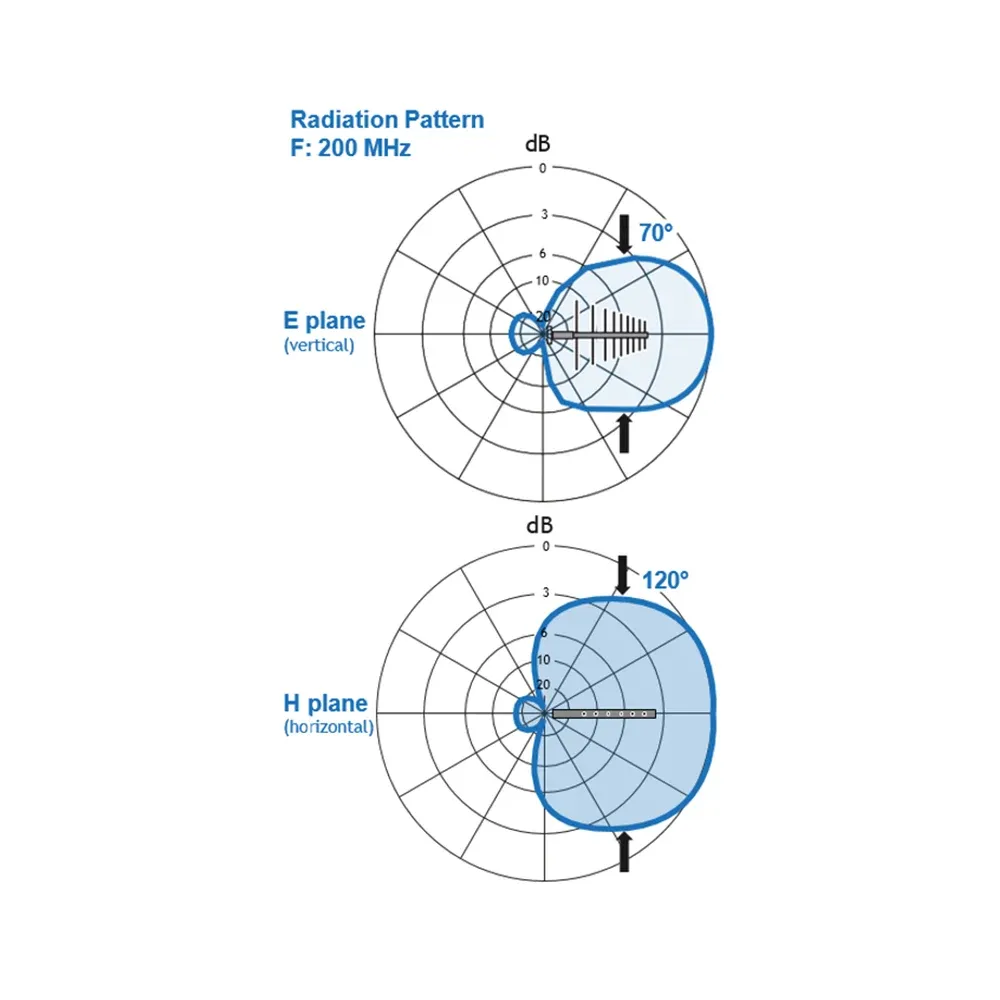

| Radiation pattern | Wind speed resistance | 200 km/h without frost | |
| E plane | 70° | Wind load at 160 km/h | 20 Nm |
| H plane | 120° | Temperature range | 40° to +70°C |
| Maximum input power | 400 W cw | Colour | White RAL 9010 |
| Connector | N f |
