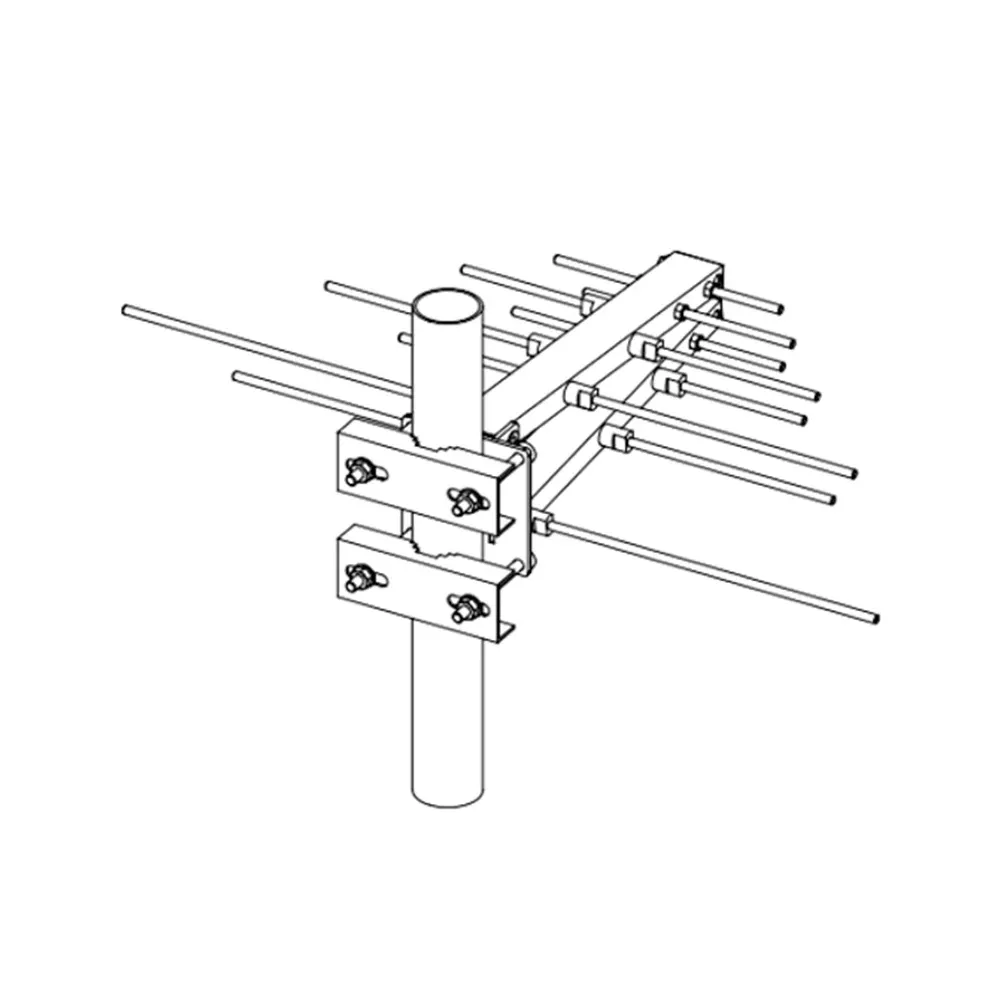

Product code: MT-AVLP-R85-110/75Ω
MT-AVLP-R85-110/75Ω
| Model : MT-AVLP-R85-110/75Ω |
| Frequency Range : 85-110 MHz |
| Impedance : 75Ω |
| Gain : 6.5 dBi |
| Weight : 6 kg |
| Connector : N f – 75 Ω |
Product Part Number
MT-AVLP-R85-110/75Ω
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 85 to 110 MHz | Length | 1.92 m |
| Impedance | 75 Ω | Spread | 1.25 m |
| VSWR in the band | < 1.4 | Materials | AGS – POM C |
| Isotropic gain | 6.5 dBi | Weight | 6 kg |
| Polarization | Vertical / Horizontal | Wind loading area | 0.22 m² |

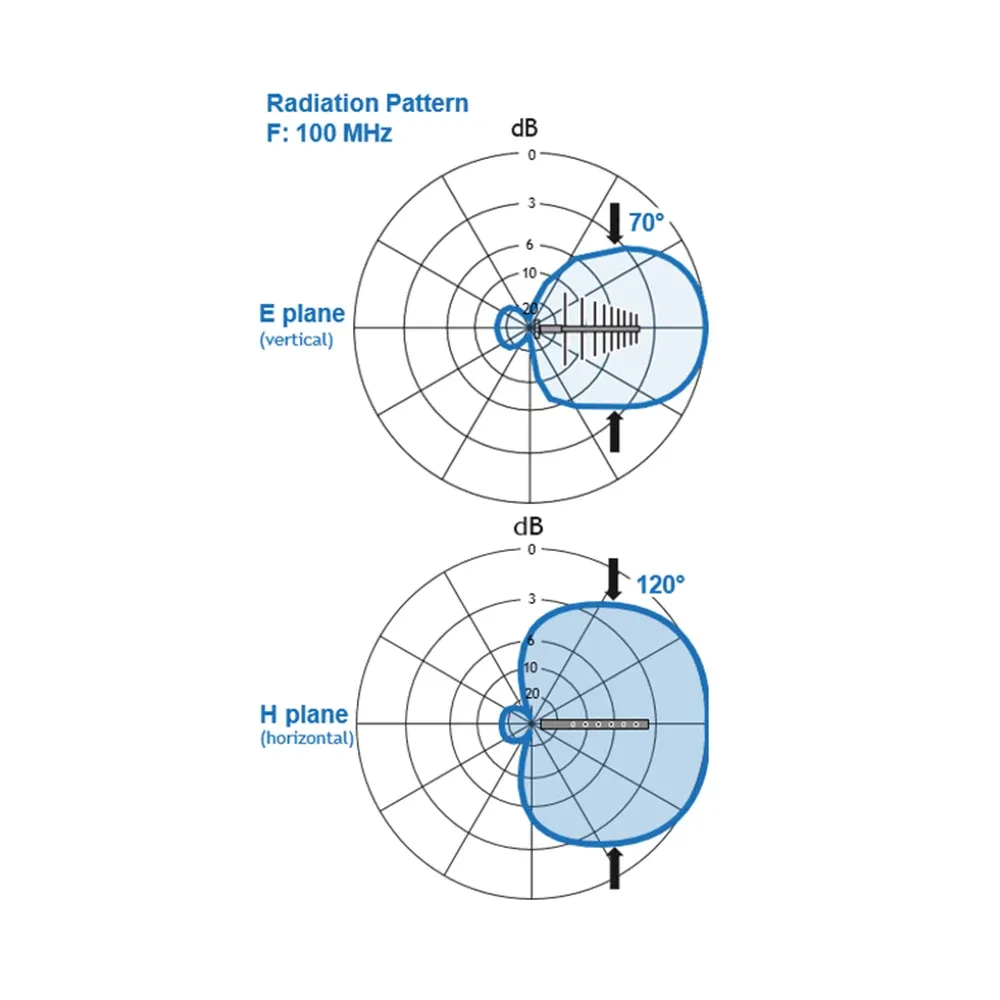

| Radiation pattern | Wind speed resistance | 200 km/h without frost | |
| E plane | 70° | Temperature range | |
| H plane | 120° | Colour | |
| Maximum input power | 600 W cw | -40° to +80°C | |
| Connector | N f – 75 Ω | White RAL 9010 |
