Product code: MT-AVLP-R85-110FM
MT-AVLP-R85-110FM
| Model : MT-AVLP-R85-110FM |
| Frequency Range : 85-110 MHz |
| Impedance : 50Ω |
| Gain : 6.5 dBi |
| Weight : 6 kg |
| Connector : Nf |
Product Part Number
MT-AVLP-R85-110FM
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 85 to 110 MHz | Length | 1.25 m |
| Impedance | 50 Ω | Spread | 1.92 m |
| VSWR in the band | < 1.4 | Materials | AGS – POM C |
| Isotropic gain | 6.5 dBi | Weight | 6 kg |
| Polarization | Vertical / Horizontal | Wind loading area | 0.22 m² |

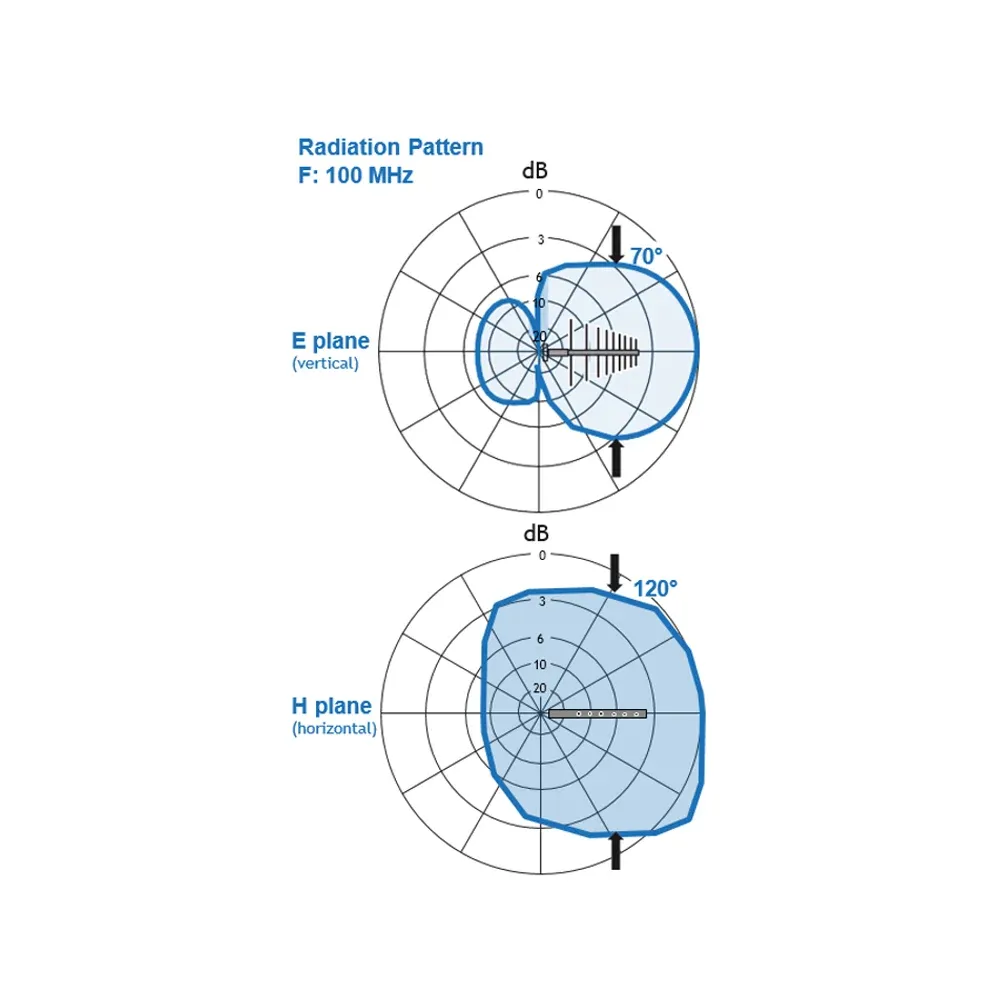

| Radiation pattern | 70° | Wind speed resistance | 200 km/h without frost |
| E plan | 120° | Wind load at 160 km/h | 33 Nm |
| H plan | Temperature range | -40° to +70°C | |
| Maximum input power | 500 W cw | Colour | White RAL 9010 |
| Connector | N f |
