Product code: MT-AVLP110-150
MT-AVLP110-150
| Model : MT-AVLP110-150 |
| Frequency Range : 110-150 MHz |
| Impedance : 50 Ω |
| Gain : 6.5 dBi |
| Weight : 5 Kg |
| Connector : Nf |
Product Part Number
MT-AVLP110-150
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 110 to 150 MHz | Length | 1.20 m |
| Impedance | 50 Ω | Spread | 1.45 m |
| VSWR in the band | < 1.5 | Material | AGS – POM C |
| Isotropic gain | 6.5 dBi | Weight | 5 kg |
| Polarization | Vertical / Horizontal | Wind load area | 0.19 m² |

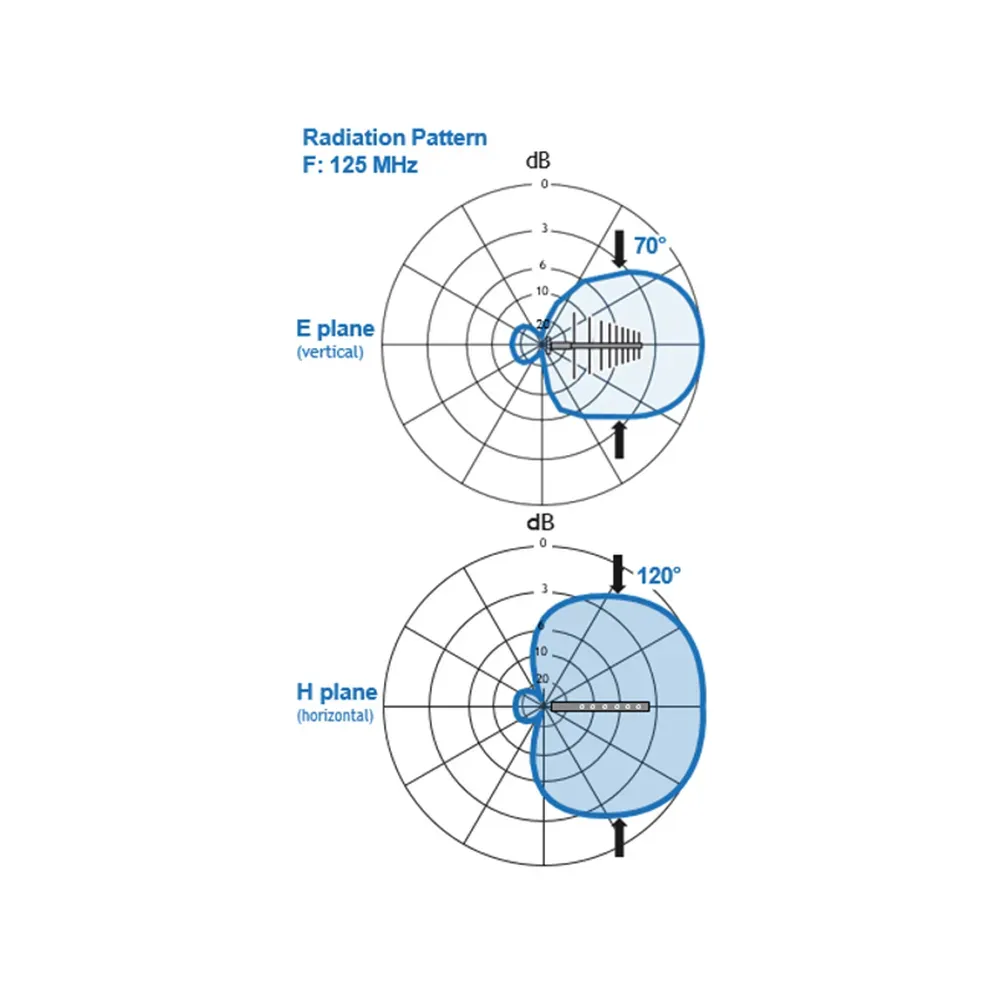

| Radiation pattern | 70° | Wind speed resistance | 200 km/h without frost |
| E plane | 120° | Temperature range | -40° to +70°C |
| H plane | Colour | White RAL 9010 | |
| Maximum input power | 300 W cw | ||
| Connector | Nf |
