Product code: MT-AVLP150-170 Navy
MT-AVLP150-170 Navy
| Model : MT-AVLP150-170 Navy |
| Frequency Range : 150-170 MHz |
| Impedance : 50Ω |
| Gain : 9.5 dBi |
| Weight : 9 kg |
| Connector : N f – RG 214/U – L = 0.5 m |
Product Part Number
MT-AVLP150-170 Navy
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 150 to 170 MHz | Length | 2 m |
| Impedance | 50 Ω | Spread | 0.95 m |
| VSWR in the band | < 1.4 | Materials | AGS – POM C – Stainless |
| Isotropic gain | > 9.5 dBi | Weight | 9 kg |
| Polarization | Vertical / Horizontal / 45° option | Wind loading area | 0.17 m² |

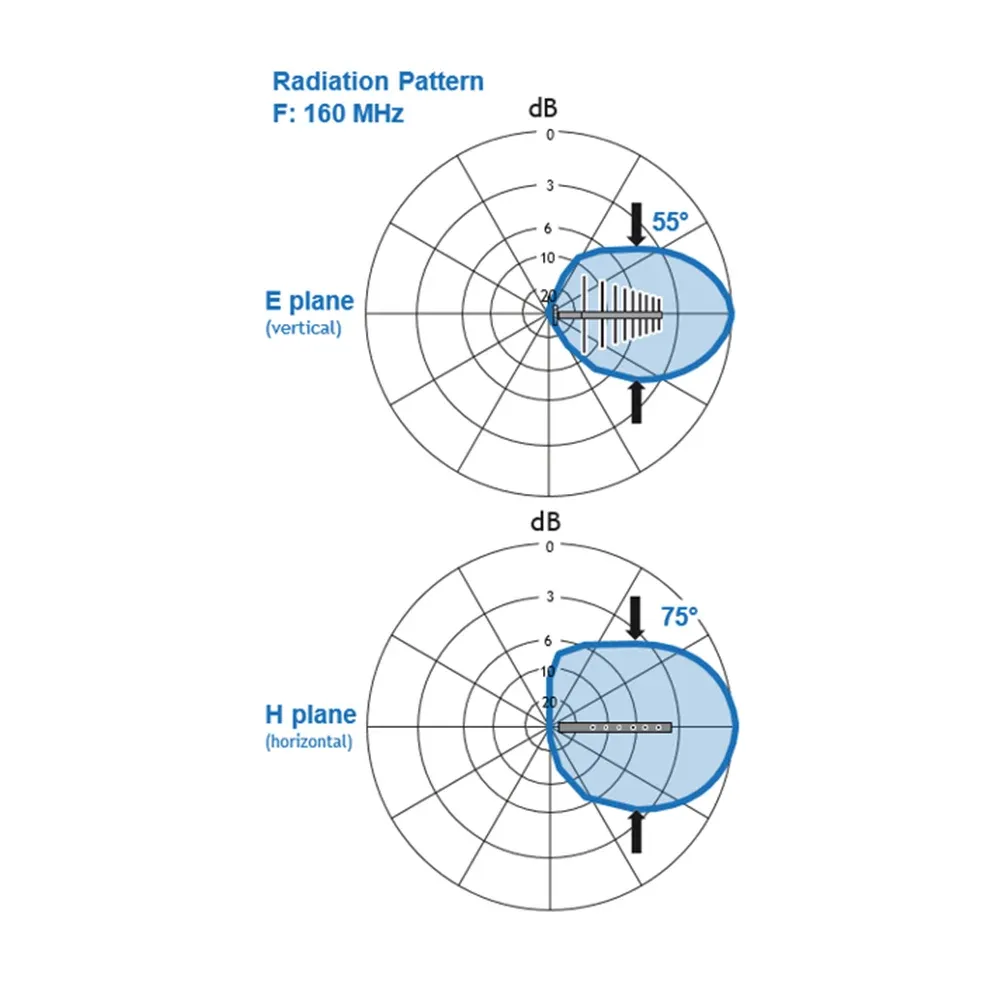

| Radiation pattern | 55° | Wind speed resistance | 230 km/h without frost |
| E plan | 75° | Temperature range | -40° to +70°C |
| H plan | Colour | White RAL 9010 | |
| Front-to-back ratio | >21 dB | Fixation | 60 to 114 mm tube |
| Maximum input power | 500 W cw | ||
| Connector | N f – RG 214/U – L = 0.5 m |
