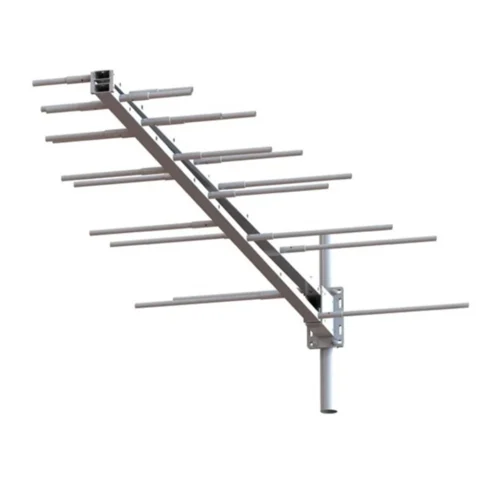

Product code: MT-AVLP170-230DAB
MT-AVLP170-230DAB
| Model : MT-AVLP170-230DAB |
| Frequency Range : 170-230 MHz |
| Impedance : 50Ω |
| Gain : 9.5 dBi |
| Weight : 7 kg |
| Connector : N f-RG 214/U – L = 0.5 m |
Product Part Number
MT-AVLP170-230DAB
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 170 to 230 MHz | Length | 2 m |
| Impedance | 50 Ω | Spread | 0.90 m |
| VSWR in the band | < 1.3 | Materials | AGS – POM C – Stainless |
| Isotropic gain | > 9.5 dBi | Weight | 7 kg |
| Polarization | Vertical | Wind loading area | 0.17 m² |

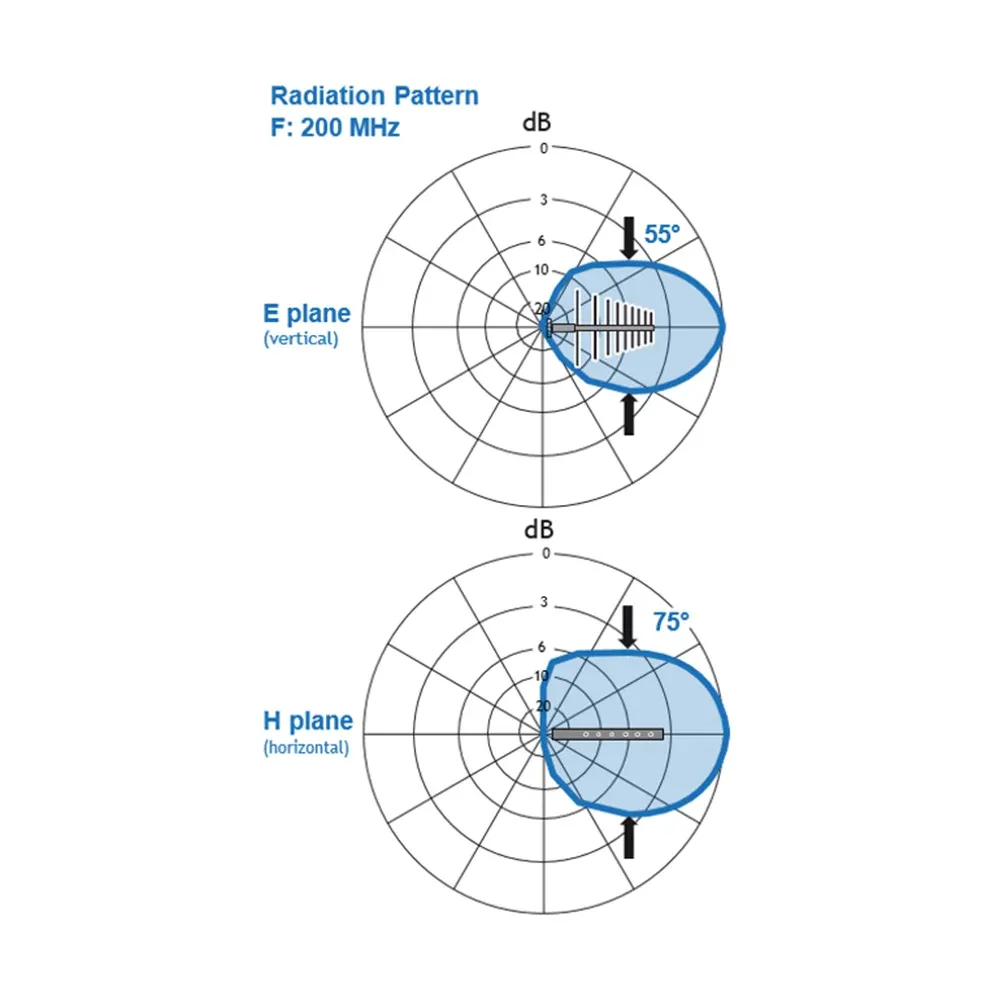

| Radiation pattern | Wind speed resistance | 220 km/h without frost | |
| E plan | 55° | Wind load at 160 km/h | 30 Nm |
| H plan | 75° | Temperature range | -40° to +80°C |
| Maximum input power | 500 W cw | Colour | White RAL 9010 |
| Connector | N f – RG 214/U – L = 0.5 m |
