Product code: MT-AVLP85-108FM
MT-AVLP85-108FM
| Model : MT-AVLP85-108FM |
| Frequency Range : 85-108 MHz |
| Impedance : 50Ω |
| Gain : 8 dBi |
| Weight : 8 kg |
| Connector : Nf |
Product Part Number
MT-AVLP85-108FM
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Centre frequency | 85 to 108 MHz | Length | 2.80 m |
| Impedance | 50 Ω | Spread | 1.70 m |
| VSWR in the band | < 1.25 | Materials | AGS – POM C – Stainless |
| Isotropic gain | > 8 dBi | Weight | 8 kg |
| Polarization | Vertical / Horizontal | Wind loading area | 0.32 m² |

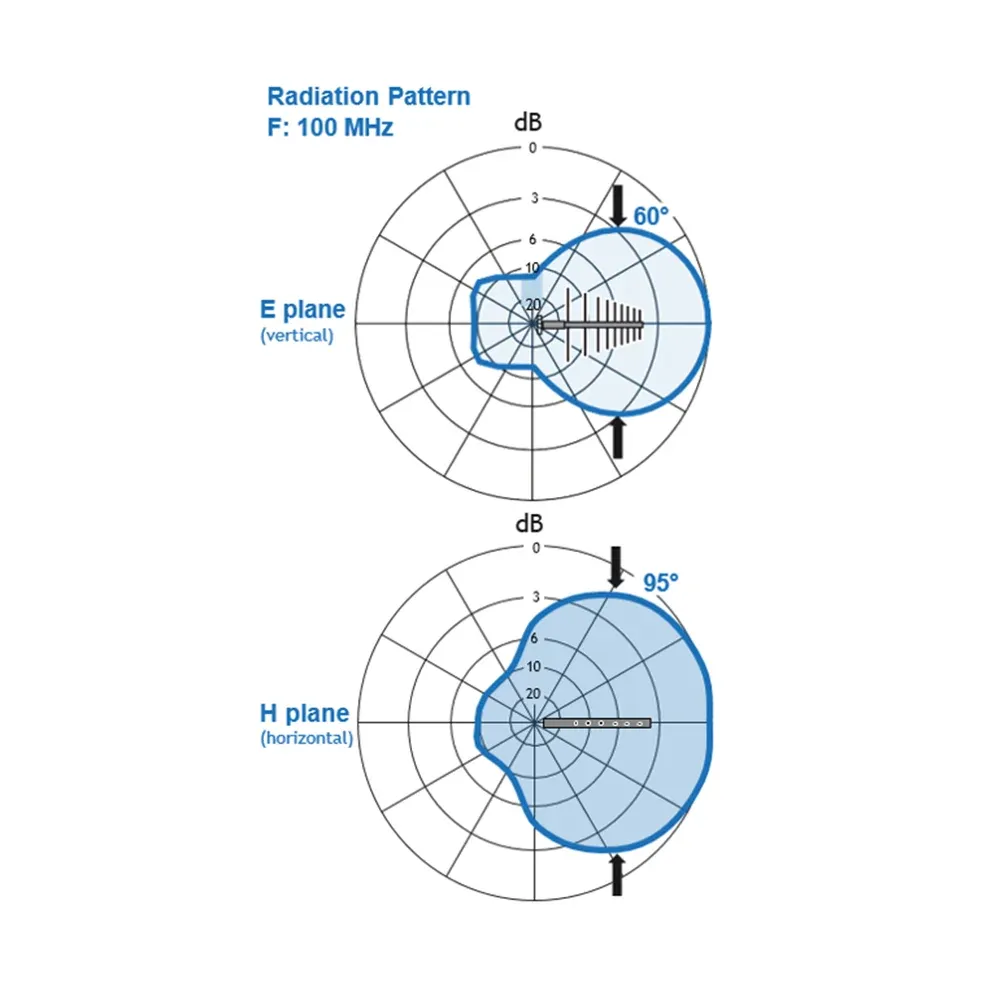

| Radiation pattern | 60° | Wind speed resistance | 220 km/h without frost |
| E plan | 95° | Wind load at 160 km/h | 30 Nm |
| H plan | Temperature range | -40° to +80°C | |
| Maximum input power | 600 W cw | Colour | White RAL 9010 |
| Connector | N f – RG 214/U – L = 0.5 m |
