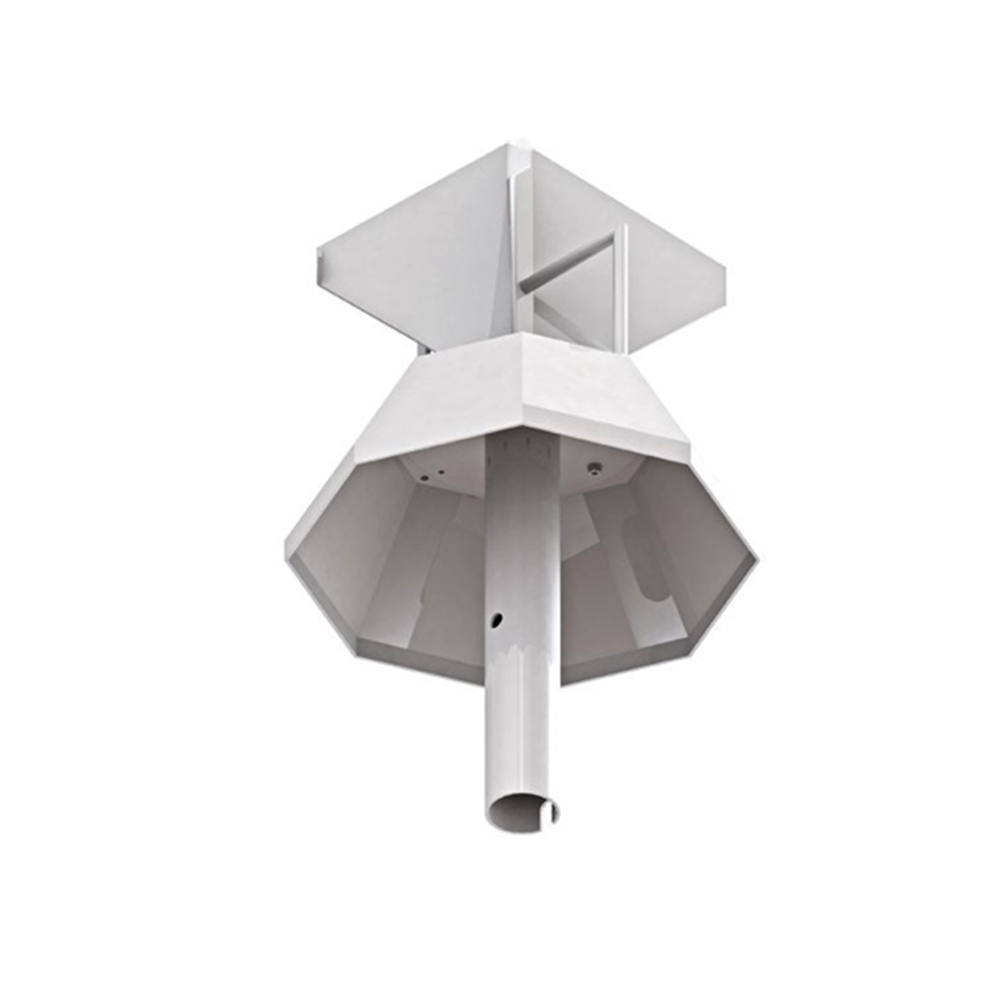

Product code: MT-AVPAN115-145
MT-AVPAN115-145
| Model : MT-AVPAN115-145 |
| Frequency Range : 115-145 MHz |
| Impedance : 50 Ω |
| Gain : 7 dBi |
| Weight : 9 Kg |
| Connector : 7-16 f |
Product Part Number
MT-AVPAN115-145
Electrical & Mechanical Specification
| Specification: | ||||
|---|---|---|---|---|
| Frequency range | 115 to 145 MHz | Height | 1.80 m | |
| Impedance | 50 Ω | Width | 0.75 m | |
| VSWR in the band | < 1.6 | Materials | AGS | |
| VSWR (118-136 MHz) | < 1.4 | Reflector | AGS / Fiberglass | |
| Isotropic gain | 7 dBi | Weight | 9 kg | |
| Polarization | Vertical | Wind loading area | 0.25 m² | |
| Radiation pattern | 65° | Wind speed resistance | 220 km/h without frost | |
| E plane | 125° | Temperature range | -40° to +70°C | |
| H plane | Colour | White RAL 9010 | ||
| Maximum input power | 1 kW cw | Fixation | Included | |
| Connector | 7-16 f |
