Product code: MT-AVPANBIII170-230DAB
MT-AVPANBIII170-230DAB
| Model : MT-AVPANBIII170-230DAB |
| Frequency Range : 170-230 MHz |
| Impedance : 50Ω |
| Gain : 10 dBi |
| Weight : 8 kg |
| Connector : 7-16 f |
Product Part Number
MT-AVPANBIII170-230DAB
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 170 to 230 MHz | Height | 1.30 m |
| Impedance | 50 Ω | Width | 1.30 m |
| VSWR in the band | < 1.5 | Materials | AGS – POM C – Stainless |
| Isotropic gain | 10 dBi | Weight | 8 kg |
| Polarization | Vertical | Wind loading area | 0.30 m² |

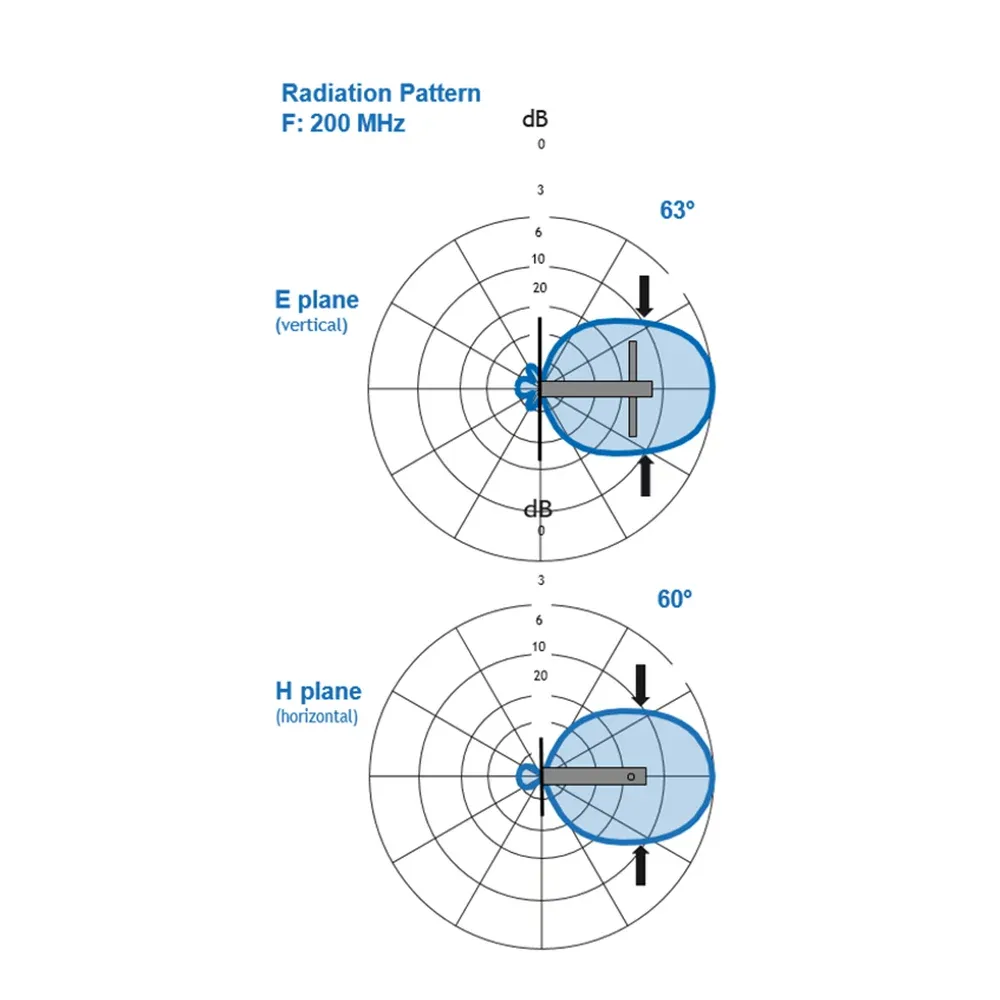

| Radiation pattern | 63° | Wind speed resistance | 220 km/h without frost |
| E plane | 60° | Wind load at 160 km/h | 55 Nm |
| H plane | Temperature range | -40° to +80°C | |
| Maximum input power | 1 kW / 3 kW @ 7/8’’ | Colour | White RAL 9010 |
| Connector | 7-16 f / EIA 7/8’’ | Fixation | included |
