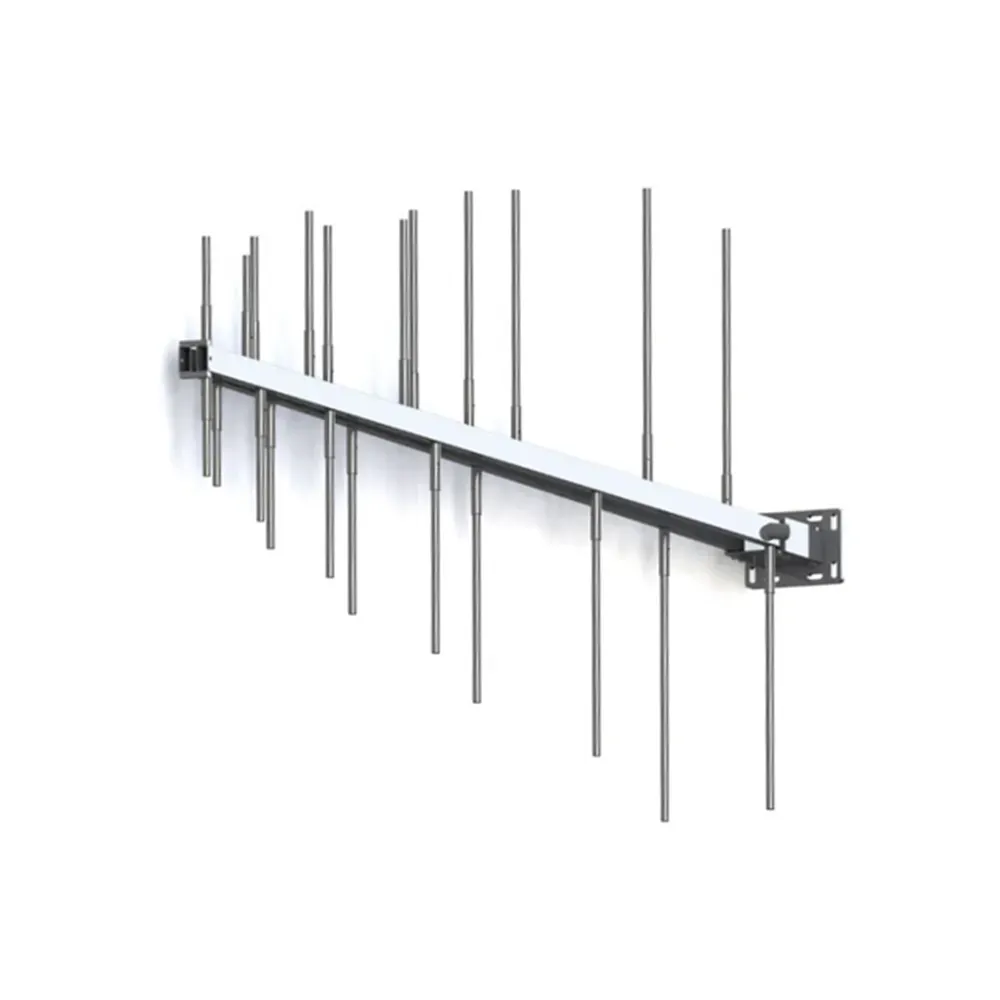

Product code: MT-AVULP100-500
MT-AVULP100-500
| Model : MT-AVULP100-500 |
| Frequency Range :100-500 MHz |
| Impedance : 50 Ω |
| Gain : 9 dBi |
| Weight : 10 Kg |
| Connector : Nf |
Product Part Number
MT-AVULP100-500
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 100 to 500 MHz | Height | 2.85 m |
| Impedance | 50 Ω | Spread | 1.65 m |
| VSWR in the band | < 1.7 | Material | AGS – POM C |
| Isotropic gain | 9 dBi | Weight | 10 kg |
| Polarization | Vertical / Horizontal | Wind load area | 0.19 m² |

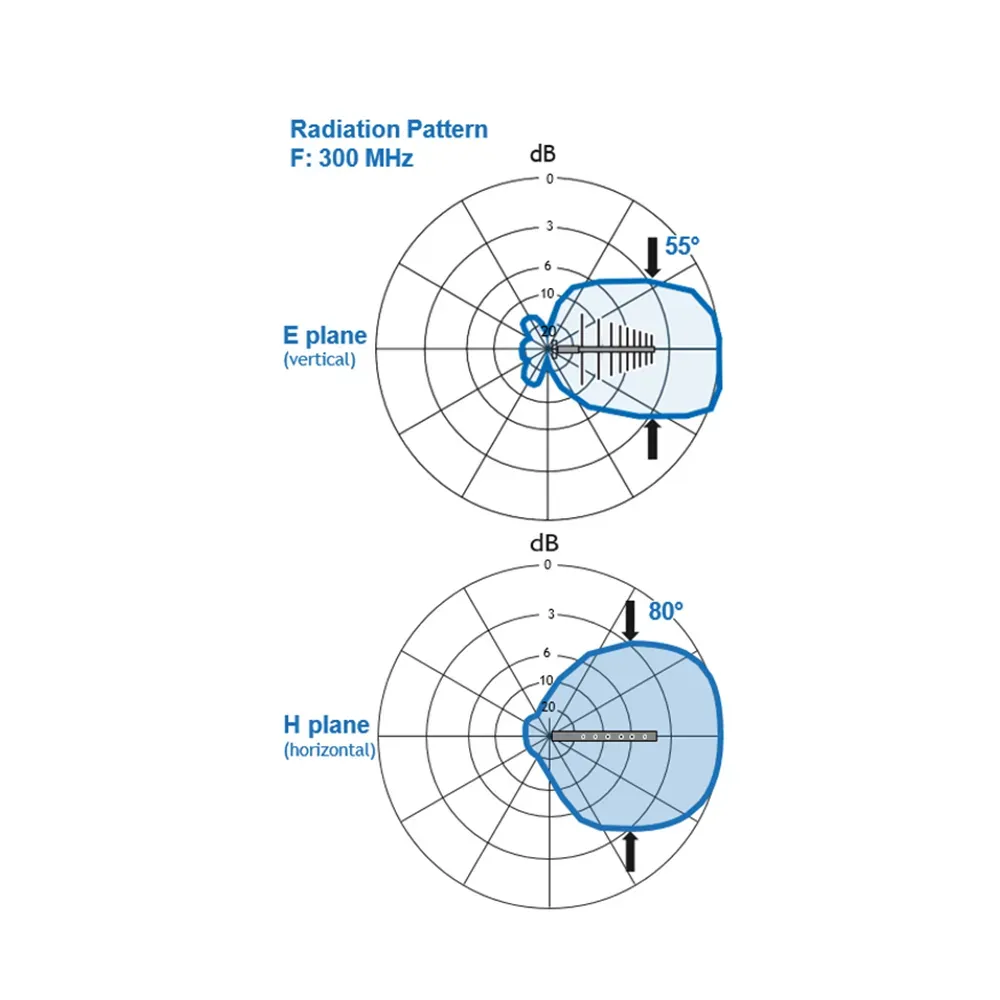

| Radiation pattern | 55° | Wind speed resistance | 160 km/h with guys |
| E plane | 80° | Temperature range | -40° à +70°C |
| H plane | Colour | White RAL 9010 | |
| Maximum input power | 300 W cw | ||
| Connector | Nf |
