Product code: N/A

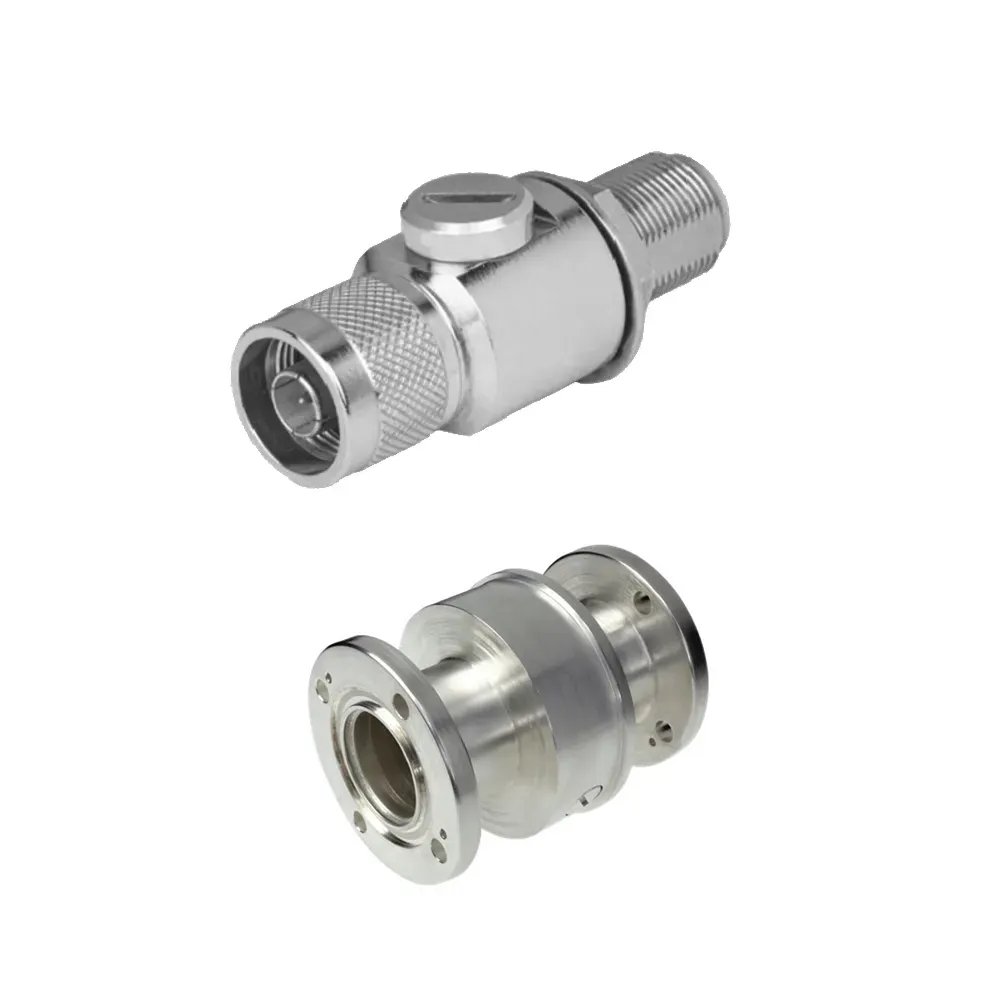

MT- Coaxial Lightning Protections
| Impedance |
| Frequency Range : DC to 1 GHz |
| Impedance : 50 Ω |

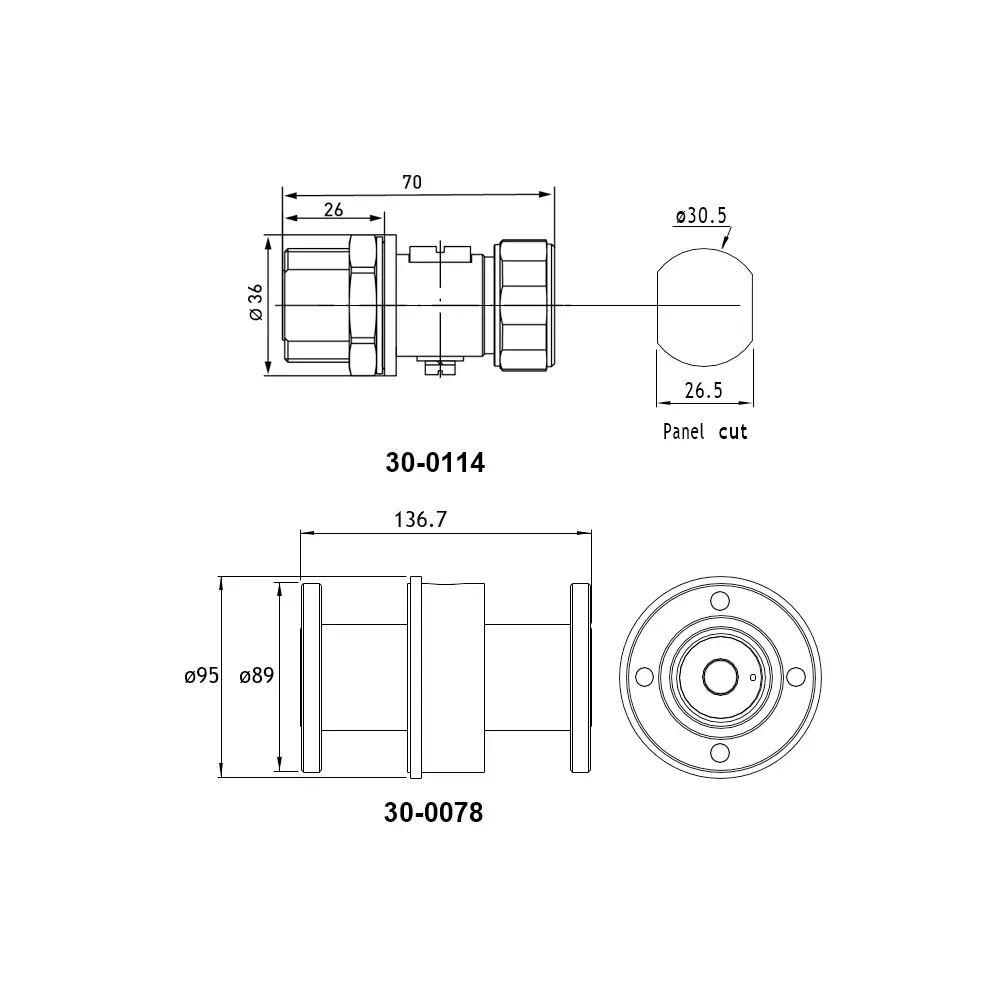

Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Impedance | 50 Ω | ||
| Frequency range | DC to 1 GHz | ||
| VSWR typical | < 1.20 | ||
| Maximum power | |||
| N | 1 kW at 30 MHz | ||
| 7-16 | 5 kW at 30 MHz | ||
| 7/8’’ | 10 kW at 30 MHz | ||
| 1.5/8’’ | 20 kW at 30 MHz |
