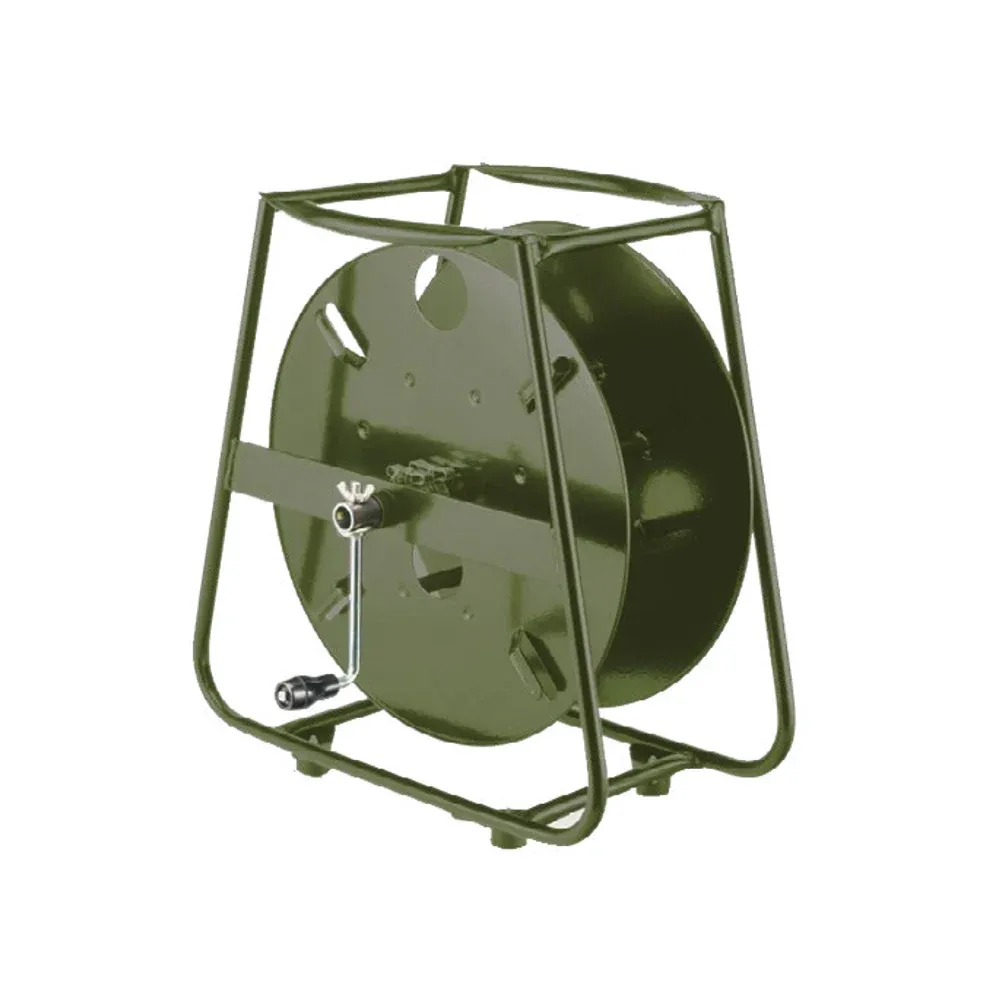

Product code: MT-Empty Cable Drum
MT-Empty Cable Drum
| Model : MT-Empty Cable Drum |
| Nominal capacity in meters |

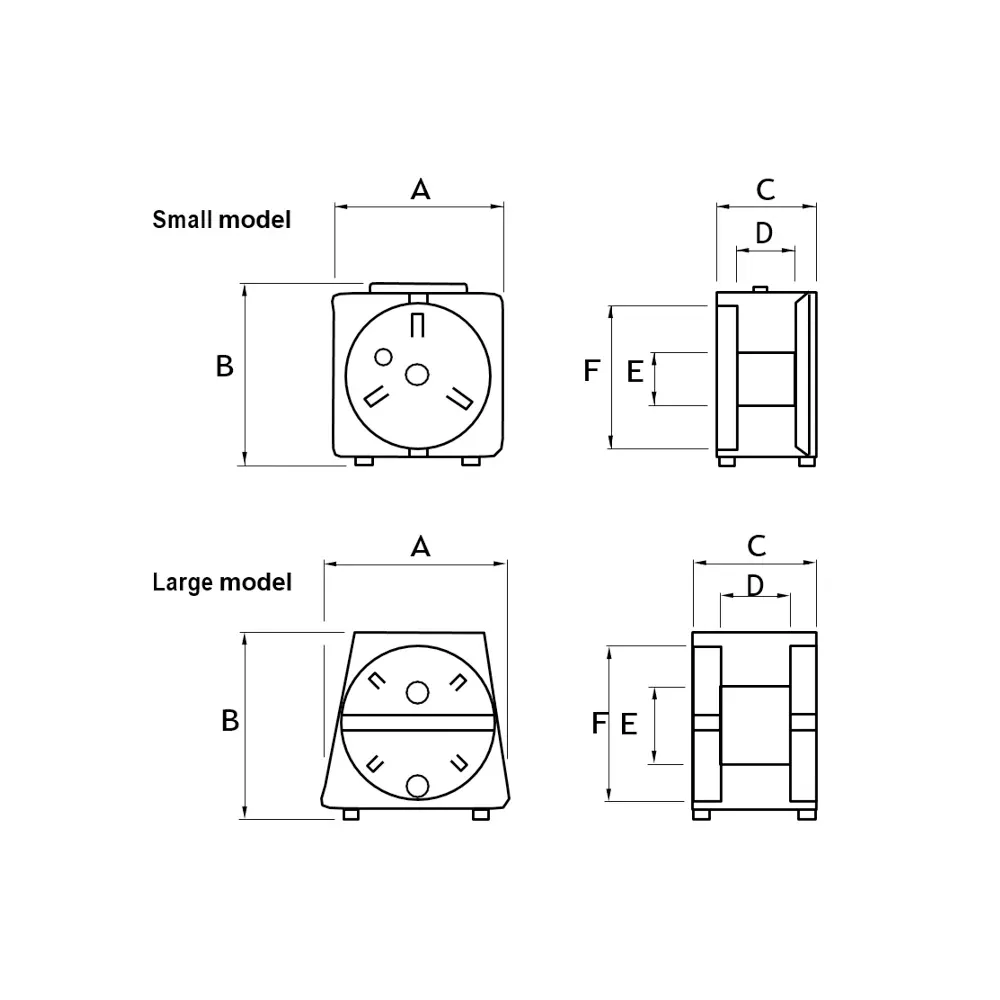

| Check the cable minimum bend radius is suitable. Refer to Drum Core E |
| Mini bend radius for 90 mm drum core: 45 mm |
| Mini bend radius for 230 mm drum core: 115 mm |
Product Part Number
MT-Empty Cable Drum
Electrical & Mechanical Specification
| Specification: | |
|---|---|
| Cable drum capacity depending cable diameter: | |
| Small model | 40 m with Ø13 mm |
| Large model | 60 m with Ø10.8 mm |
| 60 m with Ø13 mm | |
| 90 m with Ø10.8 mm | |
| Nominal capacity in metres (equal to 75% of the theoretical maximum) | |
| Check the cable minimum bend radius is suitable. Refer to Drum Core E | |
| Mini bend radius for 90 mm drum core: 45 mm | |
| Mini bend radius for 230 mm drum core: 115 mm | |
