Product code: MT-HLO4-30
MT-HLO4-30
| Model : MT-HLO4-30 |
| Frequency Range : 4-30 MHz |
| Impedance : 50 Ω |
| Temperature Range : -40° to +70°C |
| Connector : EIA 1.5/8” |
Product Part Number
MT-HLO4-30
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | Ground staying | Ø 54 m | |
| -Tx | 4 to 30 MHz | Dipole span | 36 m |
| – Rx | 2 to 30 MHz | Boom lenght | 28 m |
| Impedance | 50 Ω | Number of dipole | 14 |
| VSWR in the band | < 2.0 | Boom weight | 1750 kg |
| Maximum Gain | 12 dBi | Rotation speed | 360° in 2 minutes |
| Polarization | Horizontal | Staying | 3 levels of 3 stays |

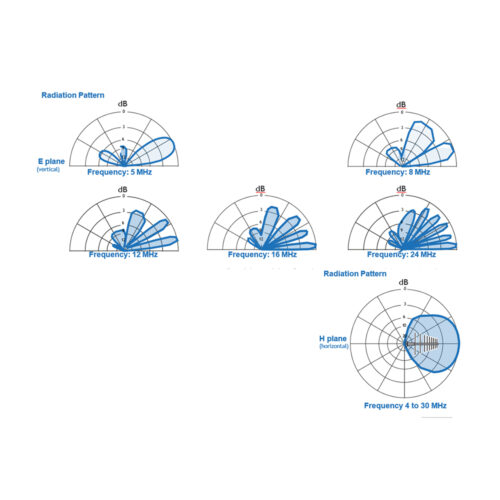

| Radiation pattern | See diagrams | Material radiating array/pylon | AGS/Hot galvanized steel |
| Maximum input power | 10 kW cw | Wind speed resistance | 200 km/h without frost |
| Connector | EIA 1.5/8’’ | Temperature range | -40° to +70°C |
| Mast height | 34.50 m |
