Product code: N/A

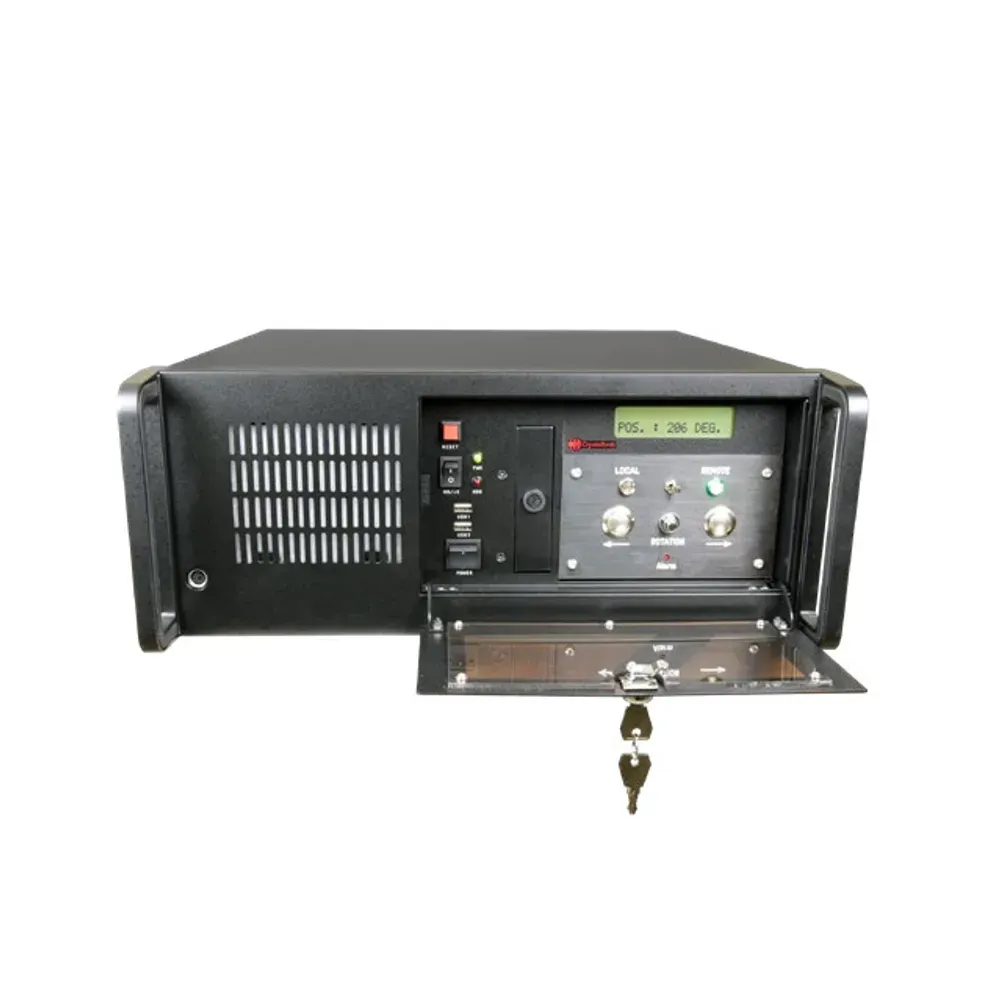

MT-UCRA Antenna Rotation Control Unit
| Construction | Black painted steel |
| Dimension (WxDxH) | 19’’ (482.6mm) x 17.7’’ (450mm) x 7’’ (177mm, 4U) |
| Operating temperature | 0° to +55°C |
| Main power supply | Full range AC 100/240 V, 50/60 Hz (350W) |
| Operating system | Microsoft Windows 10 professional 32 Bits |
| Remote control software | RS232 or IPV4 versions |
Electrical & Mechanical Specification
| Specification: | |
|---|---|
| Construction | Black painted steel |
| Dimension (WxDxH) | 19’’ (482.6mm) x 17.7’’ (450mm) x 7’’ (177mm, 4U) |
| Operating temperature | 0° to +55°C |
| Main power supply | Full range AC 100/240 V, 50/60 Hz (350W) |
| Antenna rotation modes | Local by using front panel controls Remote by using serial RS232 or network IPV4 |
| Operating system | Microsoft Windows 10 professional 32 Bits |
| Remote control software | RS232 or IPV4 versions |
| Front panel indicators | 2 lines, 16 characters backlighted LCD for angle and alarms display. |
| Rear panel interfaces | DB25 male connector for serial RS232 2 pin COMBICON connector for normally closed RF transmitter safety loop SLEM319L (19 pins) connector for antenna power control system SLEM23C (3 pins) connector for main power supply. |
| Accessories supplied | 17’’ flat LCD display, USB keyboard, optical mouse and external DVD driver |
