Product code: MT-110-500 MHz-1

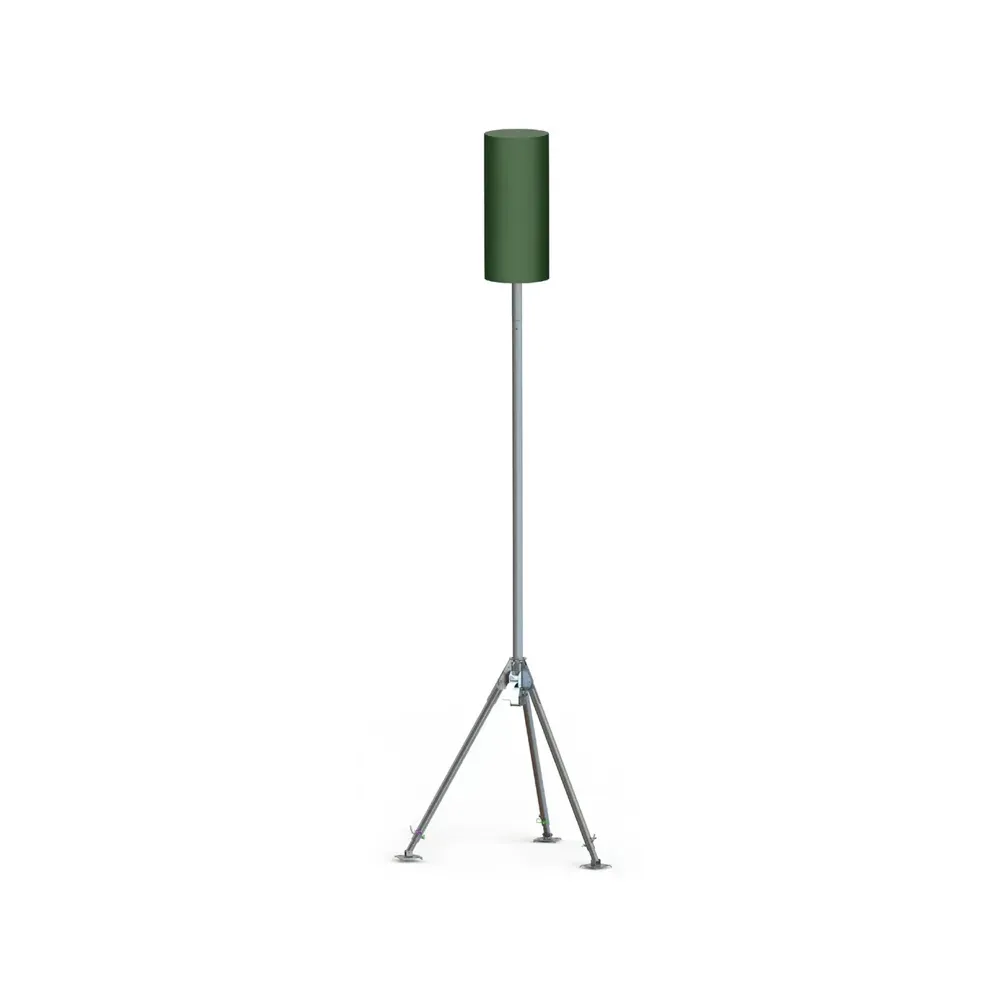

MT-V/UHF Tactical Antenna System
| Model : MT-110-500 MHz |
| Frequency Range : 110-500 MHz |
| Deployed Height : 10 M |
| Temperature Range : -40° to +70°C |
| Weight : 57 Kg |
| Color : NATO Green |
Product Part Number
MT-110-500 MHz-1
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 110 to 500 MHz | Deployment time (2 operators) | < 15 min |
| Deployed height | 10 m | Temperature range | -40° to +70°C |
| Lifting method | Vertical | Total weight packed | 57 kg |
| Number of tubes | 8 (1.20 m) | Colour | NATO green |

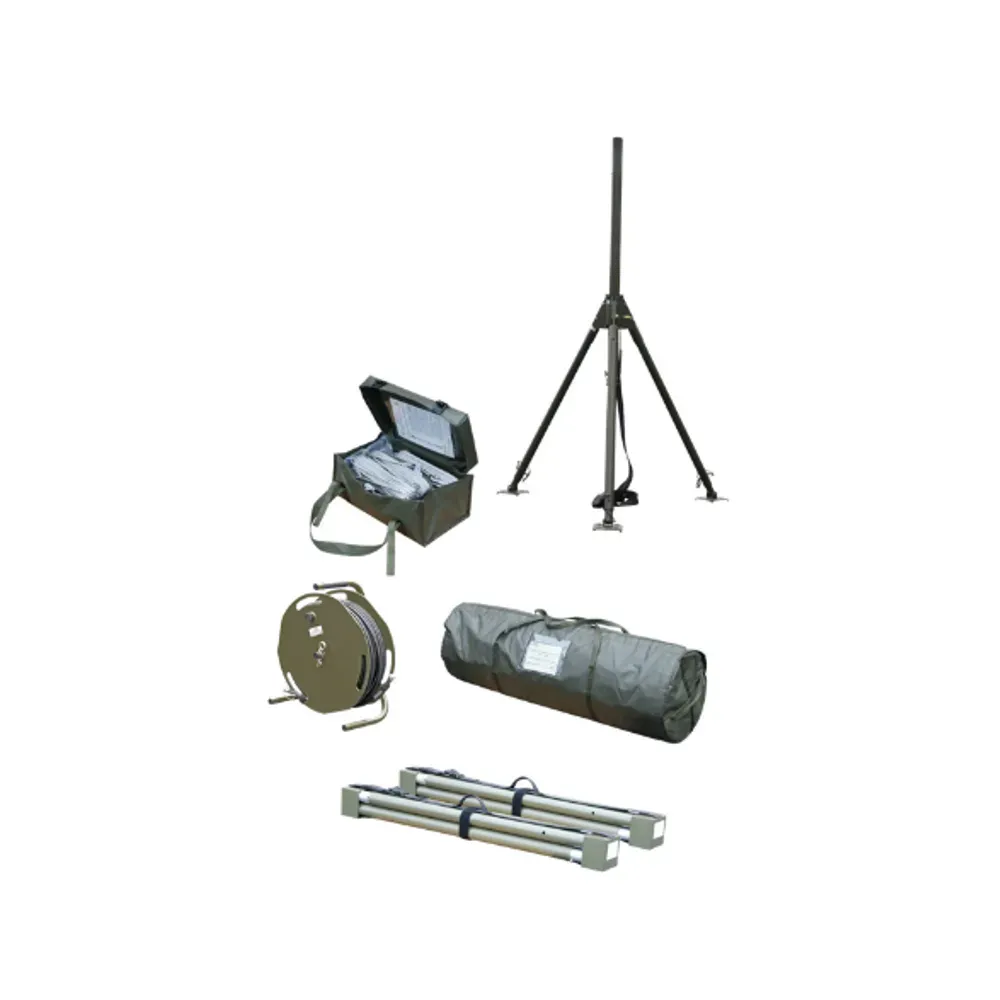

| Guying radius on the ground | 6 m | Packing | 4 bags IP 45 |
| No of guys per level | 3 @ 120° | 2 quivers of 4 mast tubes | |
| No of levels | 2 @ 6 & 10 m | Low loss coaxial cable | 30 m cable wound in a drum |
| Max. wind speed during installation | <30 km/h-8m/s | Connector | Nm |
| Max. wind speed in operation | <116 km/h-32m/s | ||
| Max. wind speed | <136 km/h-37m/s |
