Product code: MT-FDWTY5D-Oxx

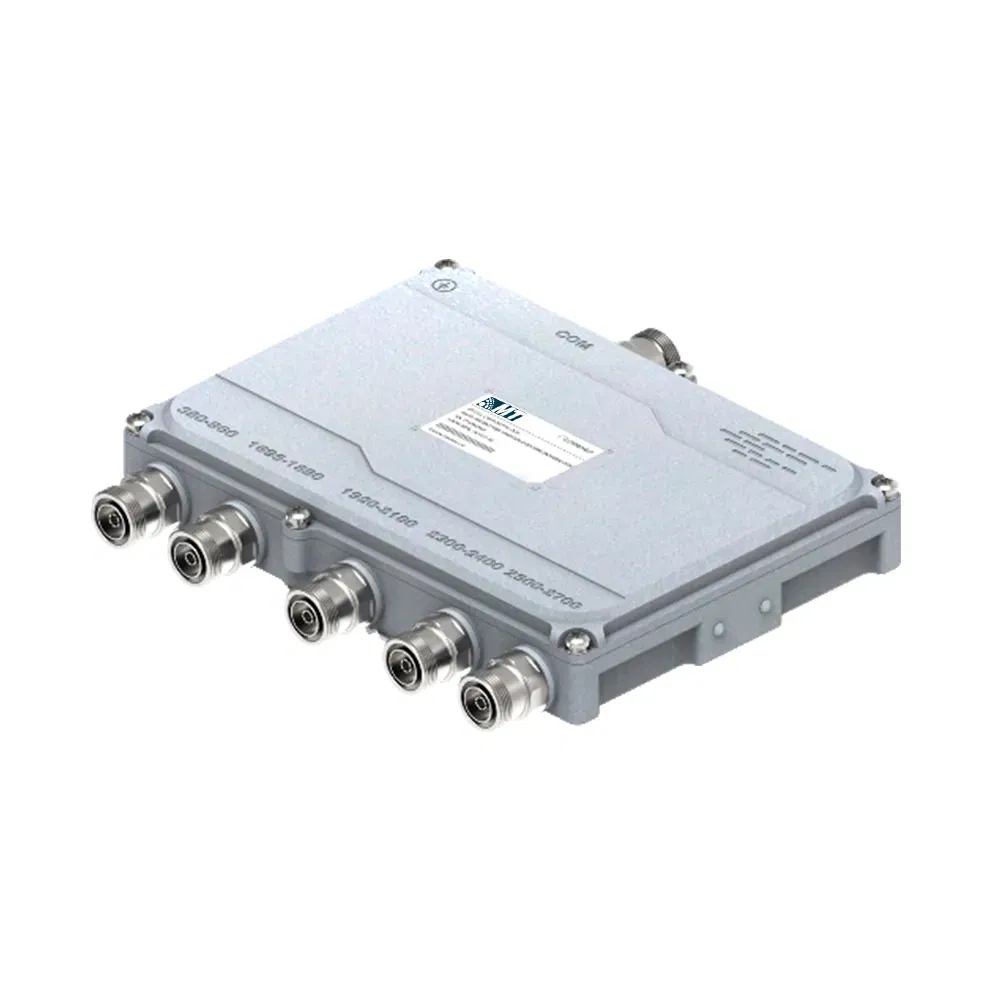

Outdoor Penta-Band Combiner 380 – 2700 MHz
| Description | Outdoor Penta-Band Combiner |
| Part No. | MT-FDWTY5D-Oxx |
| Intermodulation @2x43dBm(dBc)- | -160 |
| Frequency Range (MHz) | B1:380-960, B2:1695-1880, B3:1920-2180, B4:2300-2400, B5:2500-2700 |
| Connector Type | Din Female/4.3-10 Female |
Product Part Number
MT-FDWTY5D-Oxx
Electrical & Mechanical Specification
| Model No. | MT-FDWTY5D-Oxx | ||
|---|---|---|---|
| Intermodulation @2x43dBm(dBc) | -160 | ||
| Dimension (L x W x H in mm) | 210.5x294x50, 210.5x294x103 | ||
| Connector Type | Din Female/4.3-10 Female | ||
| Frequency Range (MHz) | B1:380-960, B2:1695-1880, B3:1920-2180, B4:2300-2400, B5:2500-2700 | ||
| DC-Bypass | x=1 , 2, 3, 4, 5, 6 or 10, Preconfigured DC/AISG By-Pass | ||
| Power Handling (W) | 250 | ||
| Description | Outdoor Penta-band Combiner |
