Product code: MT-FKY3D-Oxx

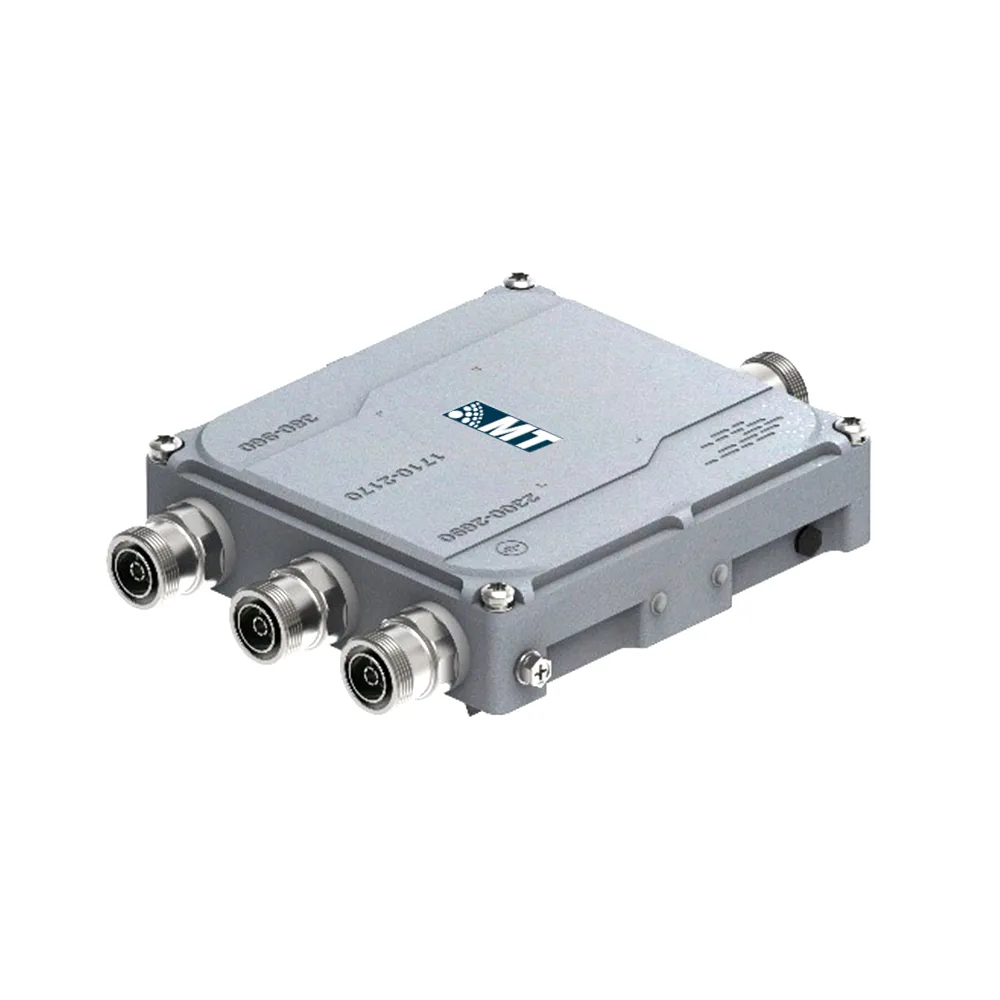

Outdoor Triple-band Combiner 380 – 2690 MHz

Description Outdoor Triple-band Combiner
Part No.
MT-FKY3D-Oxx
Intermodulation @2x43dBm(dBc) -160
Frequency Range (MHz) B1:380-960, B2:1710-2170, B3:2300-2690
Connector Type Din Female/4.3-10 Female
WhatsApp Chat
Skype
Product Part Number
MT-FKY3D-Oxx
Electrical & Mechanical Specification
Model No.MT-FKY3D-OxxB
Intermodulation @2x43dBm(dBc)-160
Dimension (L x W x H in mm)187x172x48, 187x172x101
Connector TypeDin Female/4.3-10 Female
Frequency Range (MHz)B1:380-960, B2:1710-2170, B3:2300-2690
DC-Bypassx=1, 2, 3, 4 or 6, Preconfigured DC/AISG By-Pass
Power Handling (W)250
DescriptionOutdoor Triple-band Combiner
