Product code: MT-AEJ3D-Oxx

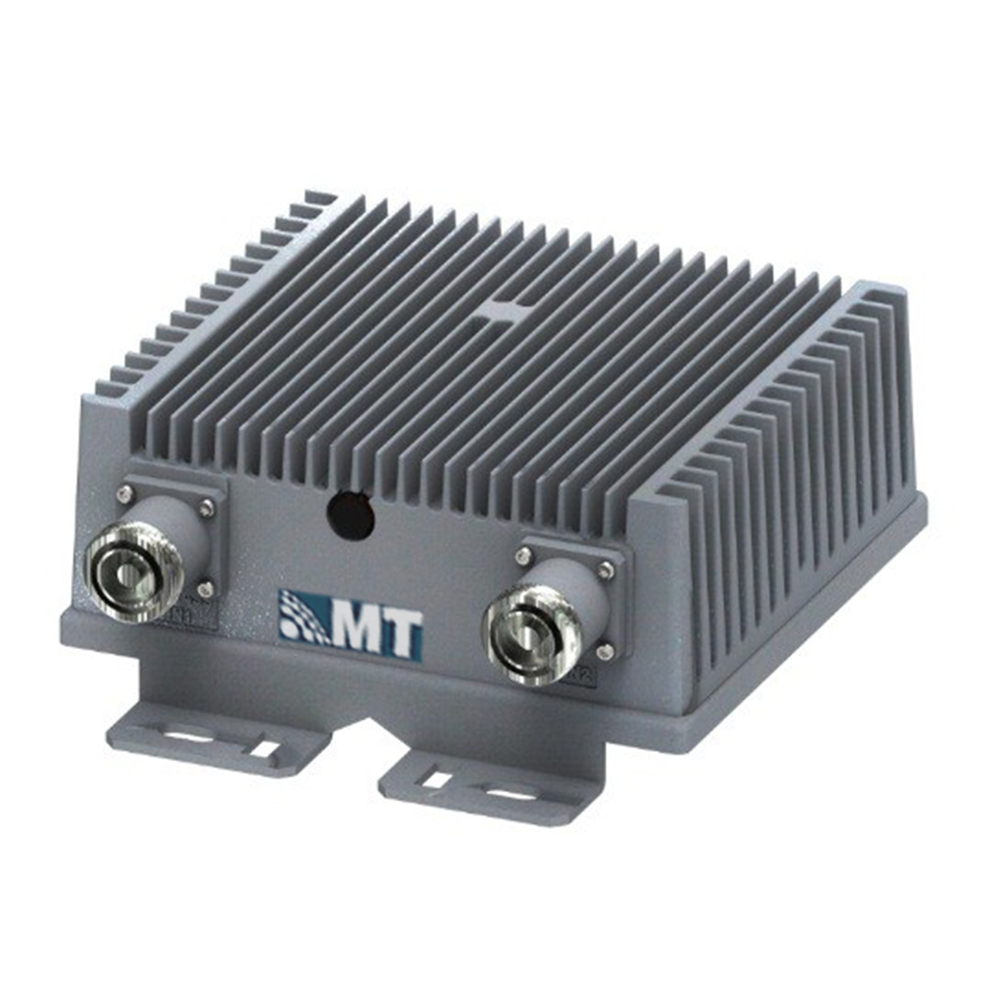

Outdoor Triple-band Combiner 690 – 2700 MHz
| Description | Outdoor Triple-band Combiner |
| Part No. | MT-AEJ3D-Oxx |
| Intermodulation @2x43dBm(dBc) | -160 |
| Frequency Range (MHz) | B1:2540-2560/2660-2680, B2:2570-2615 |
| Connector Type | Din Female/4.3-10 Female |
Product Part Number
MT-AEJ3D-Oxx
Electrical & Mechanical Specification
| Model No. | MT-AEJ3D-Oxx | ||||
|---|---|---|---|---|---|
| Intermodulation @2x43dBm(dBc) | -160 | ||||
| Dimension (L x W x H in mm) | 190x215x55, 190x215x115 | ||||
| Connector Type | Din Female/4.3-10 Female | ||||
| Frequency Range (MHz) | B1:690-862, B2:880-960, B3:1710-2700 | ||||
| DC-Bypass | x=1, 2, 3, 4 or 6, Preconfigured DC/AISG By-Pass | ||||
| Power Handling (W) | 250 | ||||
| Description | Outdoor Triple-band Combiner |
