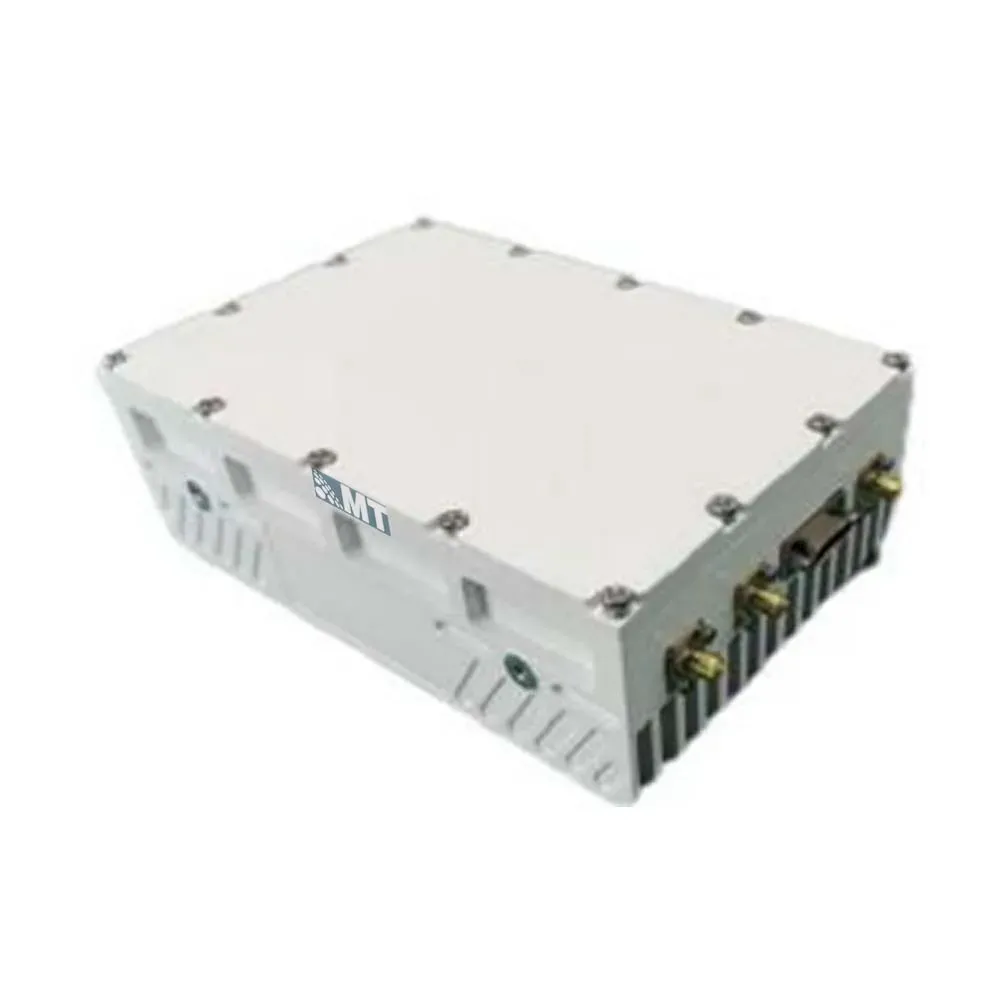

Product code: MT-40. 1-40.2GHz

Q Band Synchronous Downconverter

Model:MT-40. 1-40.2GHz
Low Noise Figure
Multi-channel synchronous frequency conversion
Low spurious signals
Ultra-Low Phase Noise
Overvoltage and Overcurrent Alarm and Protection Functions
Operating Temperature:-40℃~65℃
Storage temperature:-55℃~80℃
WhatsApp Chat
Skype
Product Part Number
MT-40. 1-40.2GHz
Electrical & Mechanical Specification
Performance Specifications
ParameterSpecifications
RF Frequency40. 1~40.2GHz
IF Frequency2.2~2.3GHz
Lo Frequency37.9GHz
Reference Frequency100MHz ,0dBm
Gain≥25dB
Gain Flatness±3dB Over the entire temperature range
Output Frequency5dBm Typical Value
Phase Noise≤-63dBc/Hz@100Hz ≤-73dBc/Hz@1kHz ≤-83dBc/Hz@10kHz ≤-93dBc/Hz@100kHz
Image Rejection40dBm
Spurious Emissions≤-55dB@0dBm Output
Harmonic≤-40dB@-10dBm Output
Input VSWR≤2
Power Supply+28V
Power Consumption≤20W
Interface Definition
ParameterSpecifications
Size180mm×121mm×65mm
RF InputWR22
IF OutputSMA-K
Reference InterfaceSMA-K
Power Supply/Communication InterfaceJ30J-21
Waterproof and DustproofIP65
