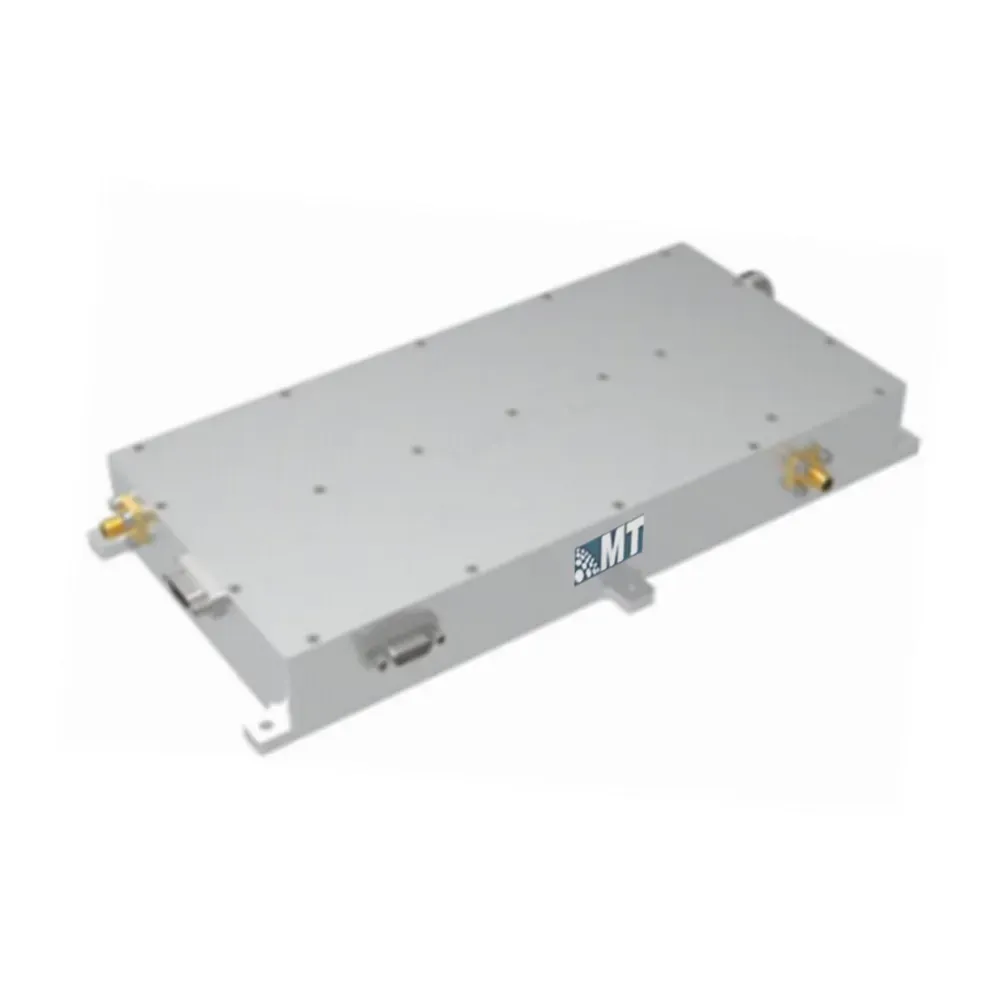

Product code: MT-2.9-3.1GHz
S Frequency Band 250W Solid-State Pulsed Power Amplifier
| Model:MT-2.9-3.1GHz |
| Power monitoring function |
| Temperature alarm & protection function |
| Power supply modulation function |
| Operating temperature:-30℃~+60℃ |
| Storage temperature:-50℃~+85℃ |
Product Part Number
MT-2.9-3.1GHz
Electrical & Mechanical Specification
| Performance Specifications | |
|---|---|
| Parameter | Specifications |
| Operating Frequency | 2.9~3.1GHz |
| Pulse Width | 60ns~150us |
| Pulse Peak Drop | ＜10% |
| Transmit Channel Input Power | 0-8dBm |
| Transmit Channel Peak Output Power | ≥250W |
| In-band Spurious Emissions of Transmit Channel | ≤-60dBc |
| Receive Channel Gain | ≥21±1dB |
| Receive Path P-1 | 19±1dBm |
| Receive Channel Noise Figure | ≤2.2dB |
| Receive Channel Front-end Protection Power | ≥150W |
| Total Power Consumption | ≤100W |
| Power Input | DC 48V, DC 12V |
| Power Output | DC 28V |
| Interface Definition | |
| Parameter | Specifications |
| RF Input | SMA-K |
| RF Output | N-50K |
| Power Supply Port | J30J-15ZKP |
| Cooling | External auxiliary heat dissipation is required |
