Product code: MT-92-96GHz-1-1

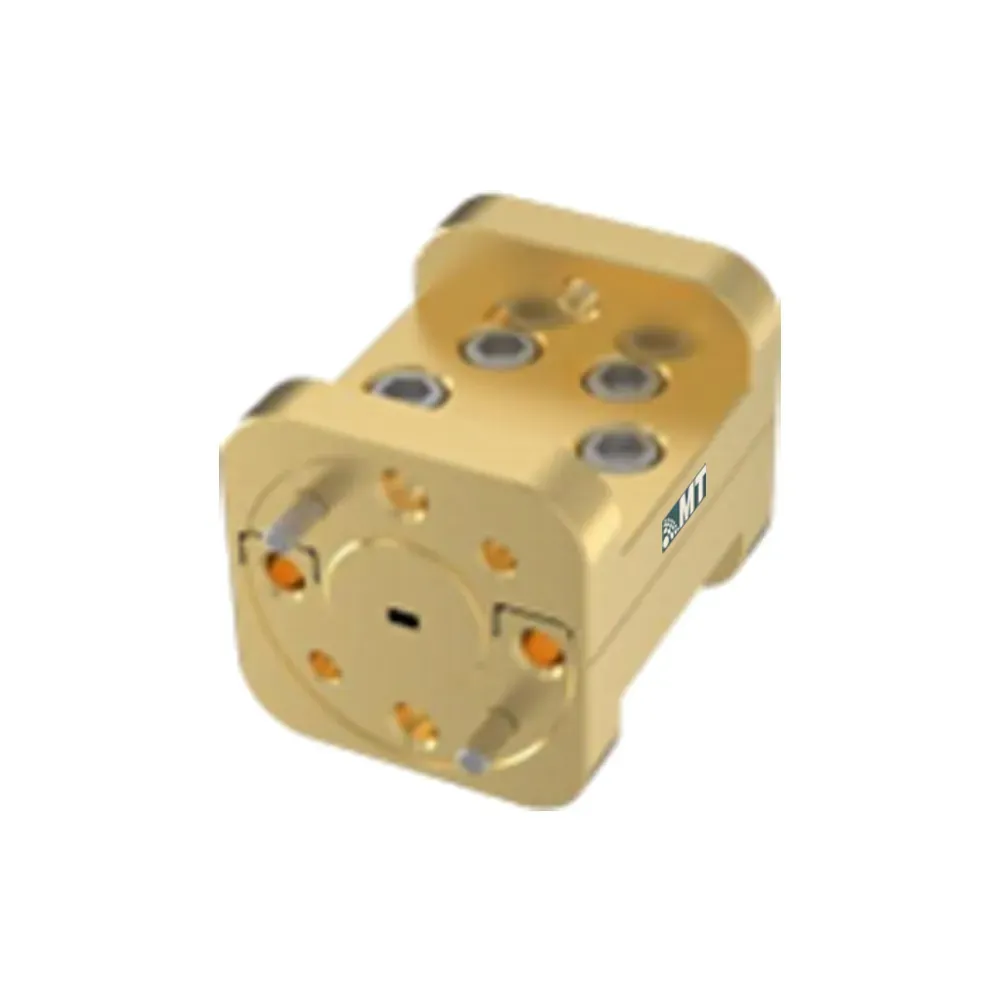

W Band Cavity Filter
| Model:MT-92-96GHz |
| High frequency, small size |
| Degree of inhibition, high flatness |
| Low loss, anti-high power |
| Operating Temperature:-55℃~85℃ |
Product Part Number
MT-92-96GHz-1-1
Electrical & Mechanical Specification
| Performance Specifications | |
|---|---|
| Parameter | Specifications |
| Frequency | 92GHz~96GHz |
| VSWR | ≤1.5 |
| Insertion Loss | ≤1dB |
| Power | >30W |
| Impedance matching | 50 Ω |
| Out-of-Band Rejection | ≥75dB |
| Interface Type | WR10 |
