Product code: MT-75-110GHz-1

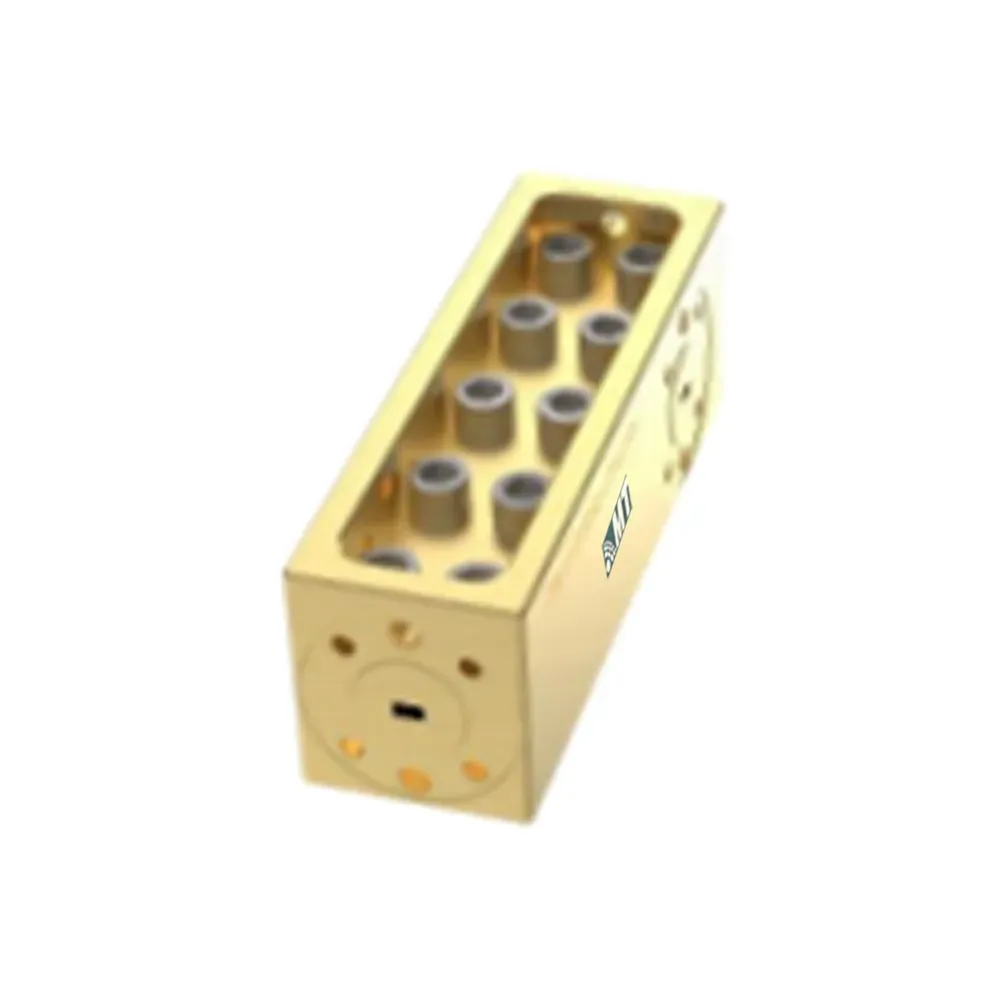

W Band Coupler Filter
| Model:MT-75-110GHz |
| High frequency, ultra-bandwidth |
| High coupling, high flatness |
| Low loss, anti-high power |
| Operating Temperature:-55℃~85℃ |
Product Part Number
MT-75-110GHz-1
Electrical & Mechanical Specification
| Performance Specifications | |
|---|---|
| Parameter | Specifications |
| Frequency | 75GHz~110GHz |
| VSWR | ≤1.3 |
| Insertion Loss | ≤0.3dB |
| Directionality | ≥15dB |
| Degree of coupling | 30dB±1dB |
| Interface Type | WR10 |
